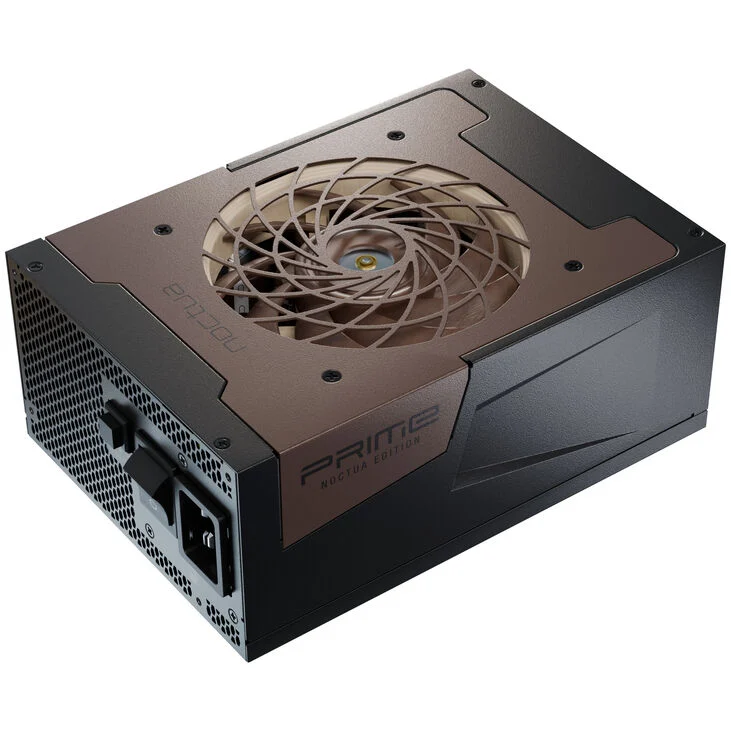

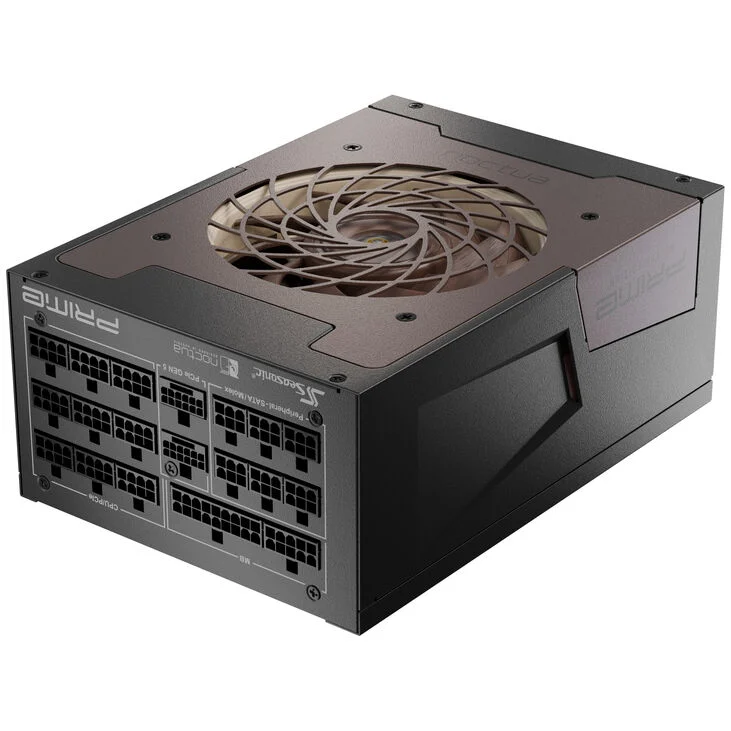

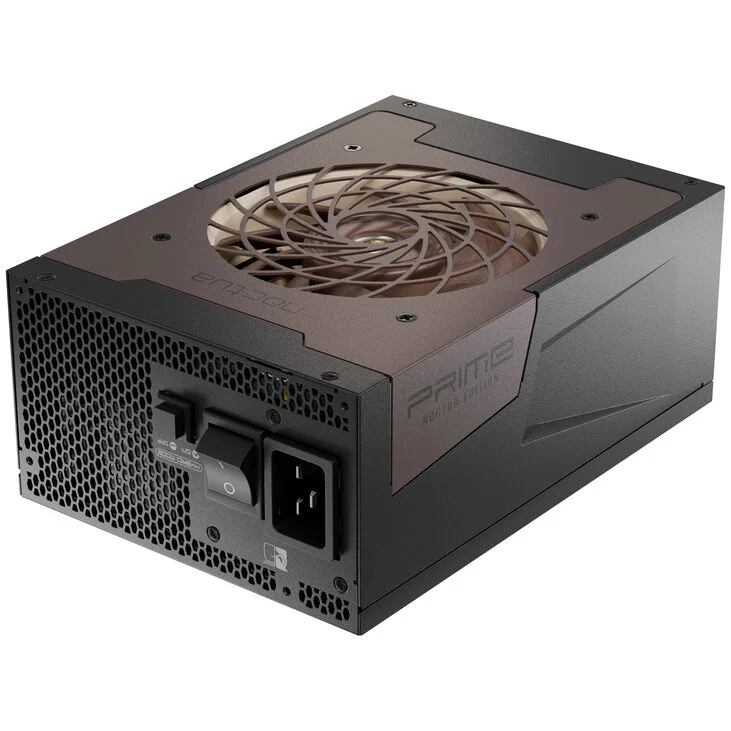

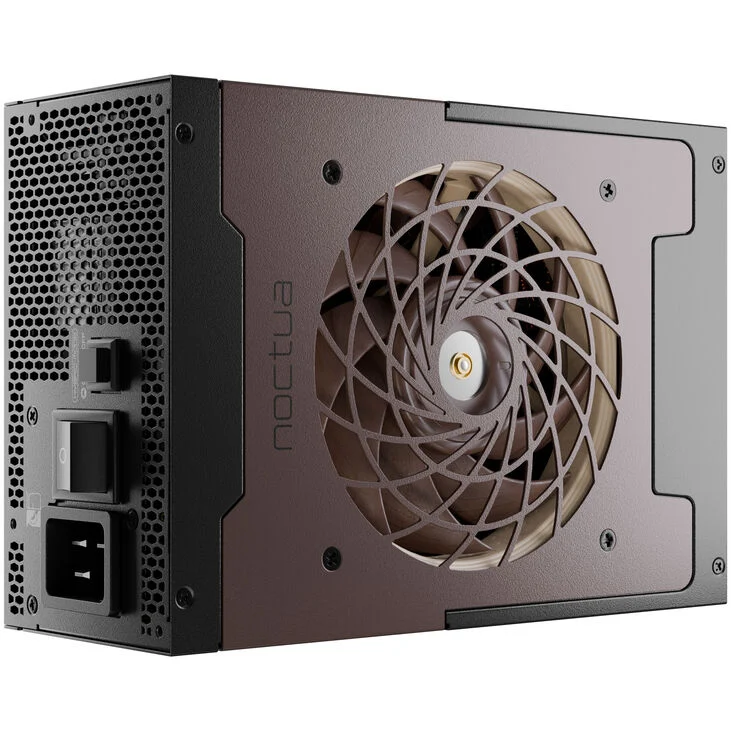

The Seasonic PRIME TX-1600 Noctua Edition delivers elite-level power, acoustic refinement, and next-gen readiness in a single, enthusiast-grade PSU. Built upon Seasonic’s award-winning PRIME TX platform and enhanced with Noctua’s renowned NF-A12x25 fan, it offers whisper-quiet operation even under full load. With a Cybenetics Lambda A++ sound rating and 80 PLUS® Titanium efficiency, this fully modular unit is engineered for extreme performance, high-load stability, and absolute silence.

Key Features:

Noctua NF-A12x25 fan for ultra-low noise levels (~8–10 dB(A) quieter than standard model)

Asetek-grade internal topology with Seasonic’s top-end PRIME TX platform

Cybenetics Lambda A++ acoustic rating (~13 dB(A) avg. noise)

Fully modular flat cables in Noctua’s brown color scheme

ATX 3.1 & PCIe 5.1 ready, ideal for next-gen GPUs and high-performance rigs

Specifications:

• Dimensions: 210 x 150 x 86 mm (PSU)

• Weight (incl. packaging): 7.86 kg

• Packaging Dimensions: 125 x 450 x 195 mm

• AC Input: 100–240V~, 50–60 Hz, 15–10 A

• Output Power: 1600 W @ 115–240V, 1300 W @ 100–240V

• Efficiency Certification: 80 PLUS® Titanium, ENERGY STAR®, ErP Lot 6 (2013)

• Fan: Noctua NF-A12x25, 120 x 120 x 25 mm, 2400 RPM max, 28.8 dB(A) max, 117.6 m³/h airflow

• Fan Bearing: SSO2 (self-stabilizing oil-pressure bearing)

• Protection: OPP / OVP / UVP / SCP / OCP / OTP

• Intel Specs: ATX 12V / EPS 12V Compliant

• Warranty: 12 years

Additional Features:

• Semi-passive fan control: 0 RPM operation up to ~50% load (≤25°C ambient)

• Whisper-quiet even at full 1600W load (~24 dB(A) @ 100% load)

• Advanced AAO fan frame and Sterrox® LCP blades

• Custom low-resistance fan grille to reduce acoustic turbulence

• Optimized for overclocked builds and workstations under heavy sustained load

Customer Benefits:

This PSU is the pinnacle of clean power and silent performance. Ideal for extreme GPU configurations, workstation builds, and silent PC enthusiasts. You get world-class electrical stability, next-gen GPU readiness, and acoustic performance that redefines what a 1600W power supply can sound like.

What’s in the Box:

• Seasonic PRIME TX-1600 Noctua Edition PSU

• Fully modular Noctua-brown flat cable set

• Power cable

• Mounting screws

• Cable ties & accessories

• User manual

Compliance:

This power supply meets or exceeds CE, FCC, ENERGY STAR®, ErP Lot 6 (2013), RoHS, and Cybenetics Lambda A++ acoustic standards. It has been engineered with premium internal components and tested for long-term reliability, energy efficiency, and reduced environmental impact.

Manufacturer Contact:

Company Name: Seasonic / Noctua
Address: (Seasonic) 6F., No. 369, Fuxing N. Rd., Songshan Dist., Taipei City 10541, Taiwan
Email: support(at)seasonic(dot)com
Website: www.seasonic.com / www.noctua.at
