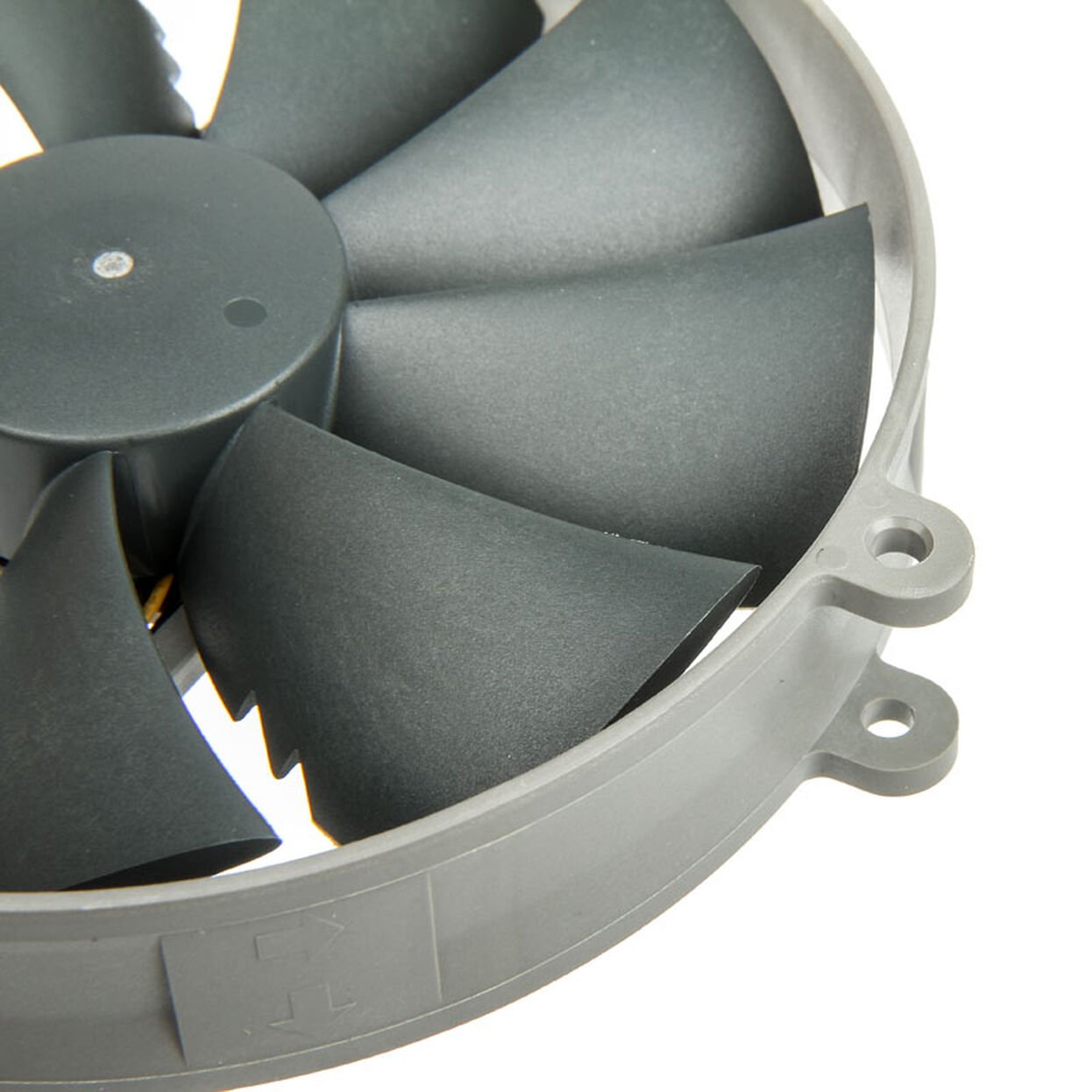

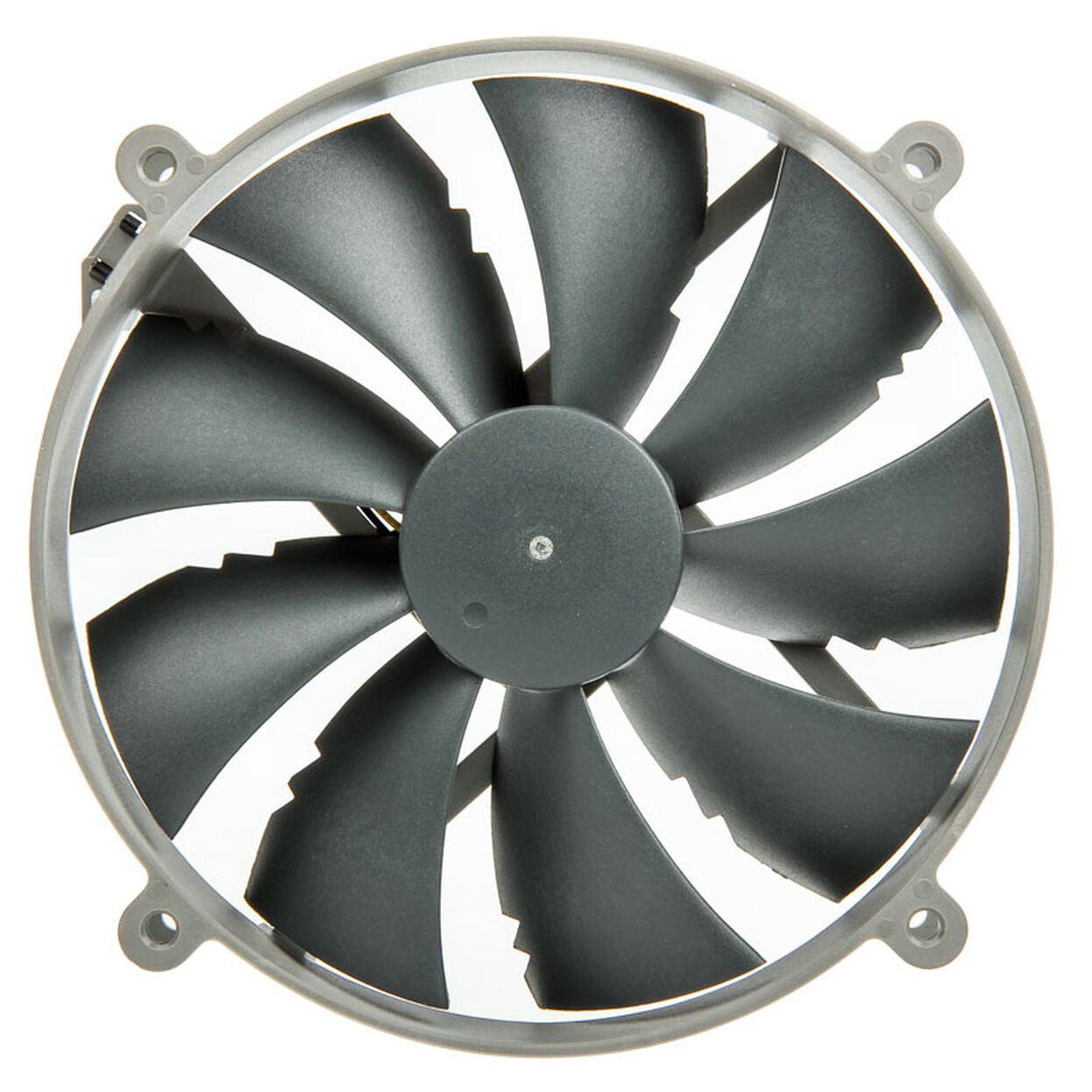

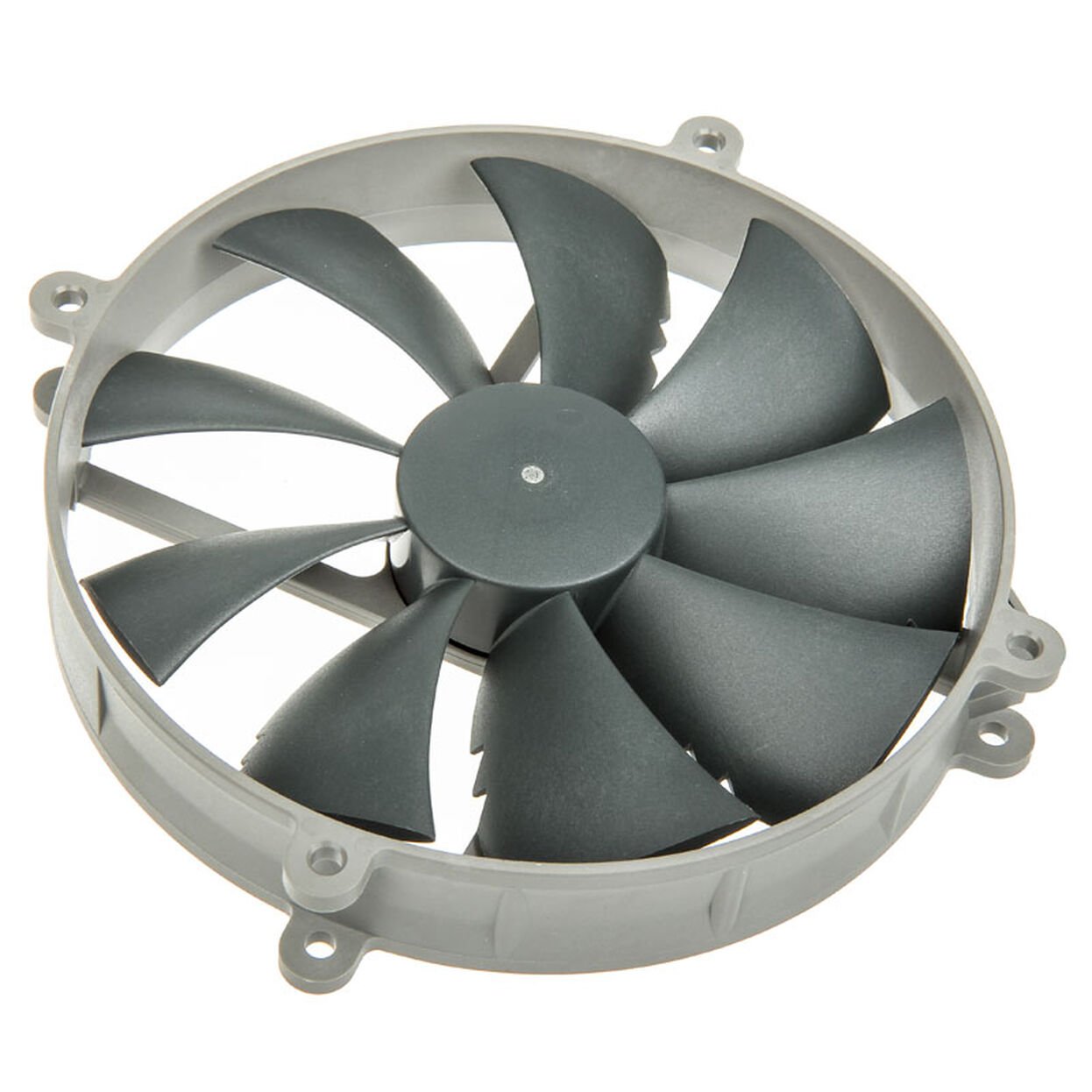

The Noctua NF-P14r redux-1500 PWM is a high-performance 140mm fan with a round-frame design, optimized for CPU coolers and radiators. As part of Noctua’s cost-efficient redux line, it offers proven thermal performance with a clean, industrial aesthetic and a high-speed 1500 RPM ceiling for excellent airflow and static pressure performance—perfect for tower coolers like the NH-D15 and NH-U14S or for retrofitting into tight spaces with 120mm mount support.

Key Features:

140mm round-frame design with 120mm mounting holes (ideal for cooler and radiator retrofits)

1500 RPM maximum speed with PWM support for dynamic fan control

Pressure-optimized blade geometry for excellent performance on heatsinks and fin stacks

Smooth Commutation Drive 2 for low noise and minimized torque switching

SSO (Self-Stabilizing Oil-pressure) bearing for long-term quiet operation

Specifications:

• Dimensions: 140 x 140 x 25 mm (round frame, 120mm mounting hole spacing)

• Weight: 160 g

• Fan Speed: 450–1500 RPM ±10%

• Airflow: up to 133.7 m³/h

• Static Pressure: 1.91 mm H₂O

• Acoustics: max. 25.8 dB(A)

• Connector: 4-pin PWM

• Voltage Range: 12V DC

• Input Power: 1.08 W

• Bearing: SSO (v1)

• MTBF: >150,000 hours

Additional Features:

• Backward-compatible with classic Noctua coolers using 120mm mounting systems

• Ideal upgrade fan for NH-U12P, NH-U14S, NH-D14, and many AIO radiators

• Redux edition: streamlined packaging and neutral grey color for cost-effective builds

• Optional accessories (anti-vibration mounts, low-noise adapters) sold separately

Customer Benefits:
The NF-P14r redux-1500 PWM delivers trusted Noctua quality and performance in a streamlined, affordable package. Its round frame and high static pressure make it perfect for heatsink or radiator applications, especially when upgrading legacy cooling systems without sacrificing silence or reliability.

What’s in the Box:

• NF-P14r redux-1500 PWM fan

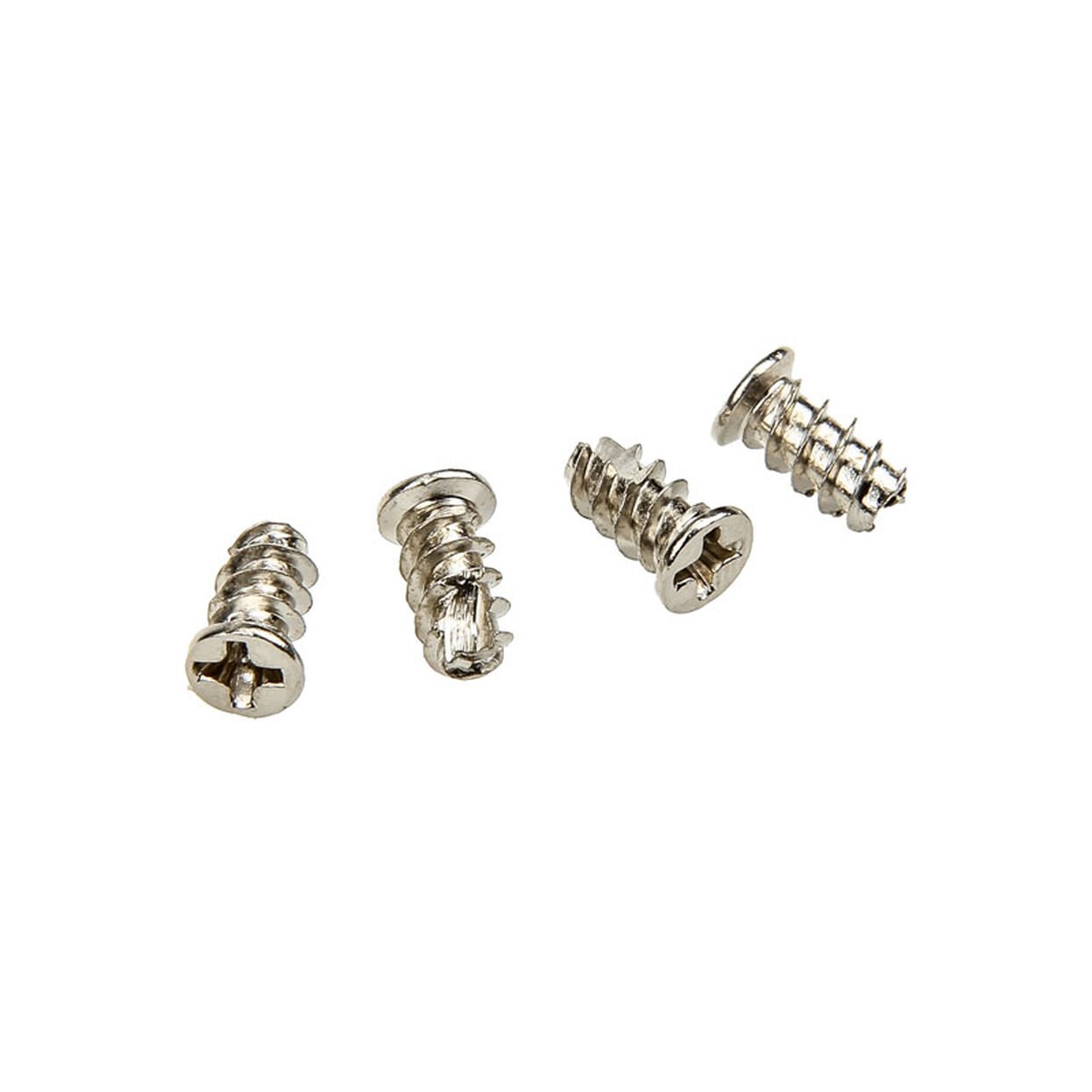

• 4 × standard fan screws

Compliance:
This product is CE, RoHS, REACH, and WEEE compliant. Built to Noctua’s renowned standards for durability, acoustic performance, and thermal efficiency.

Manufacturer Contact:
Company Name: Noctua GmbH
Address: Josef-Preis-Allee 18, 8020 Graz, Austria
Email: support(at)noctua(dot)at
