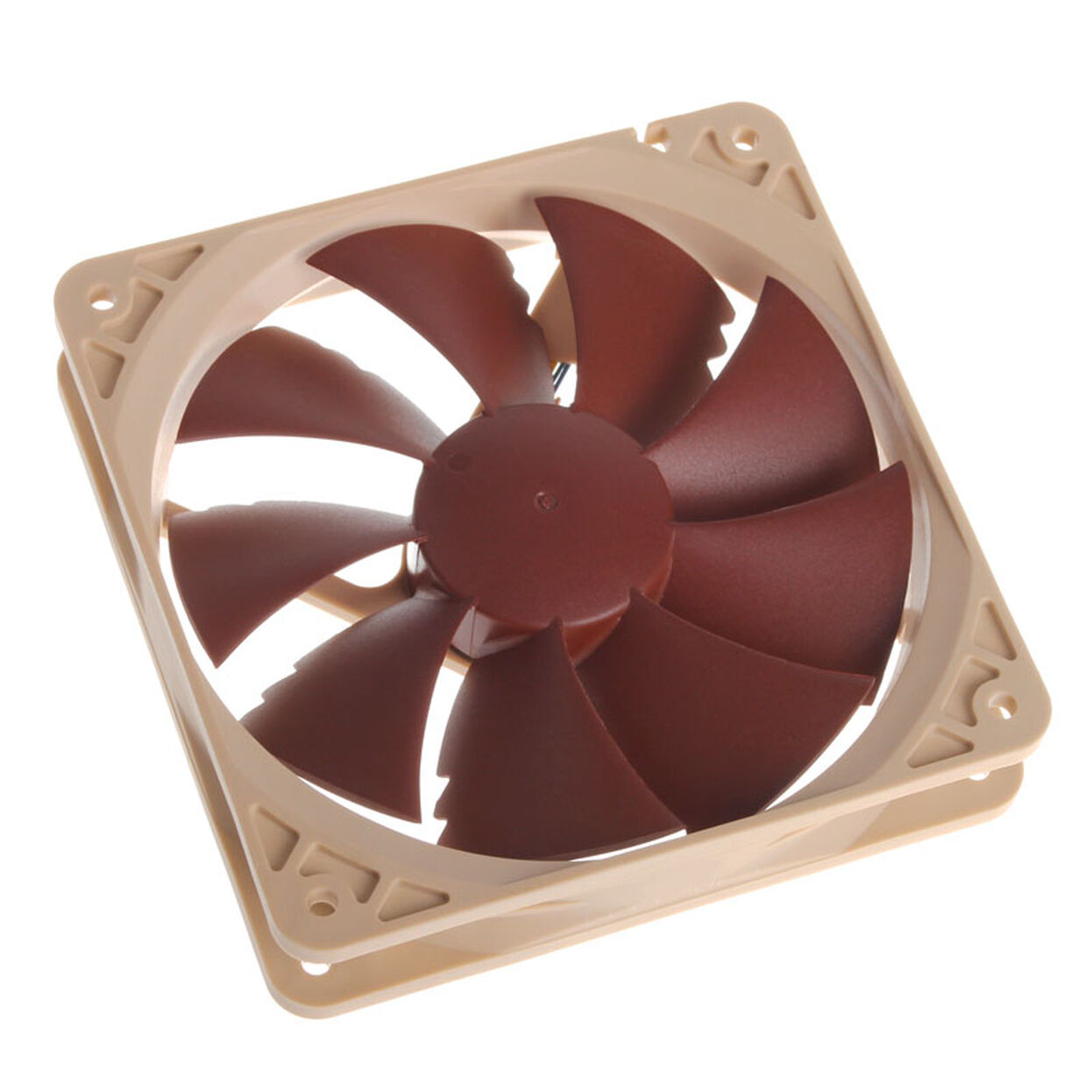

The Noctua NF-P12 PWM is a pressure-optimized 120mm fan designed for superior performance in heatsink and radiator environments. Based on the award-winning NF-P12 frame, it offers excellent static pressure, high airflow, and low noise, making it ideal for CPU coolers and water-cooling radiators. With PWM control, it dynamically adjusts speed according to system temperature for efficient and silent operation.

Key Features:

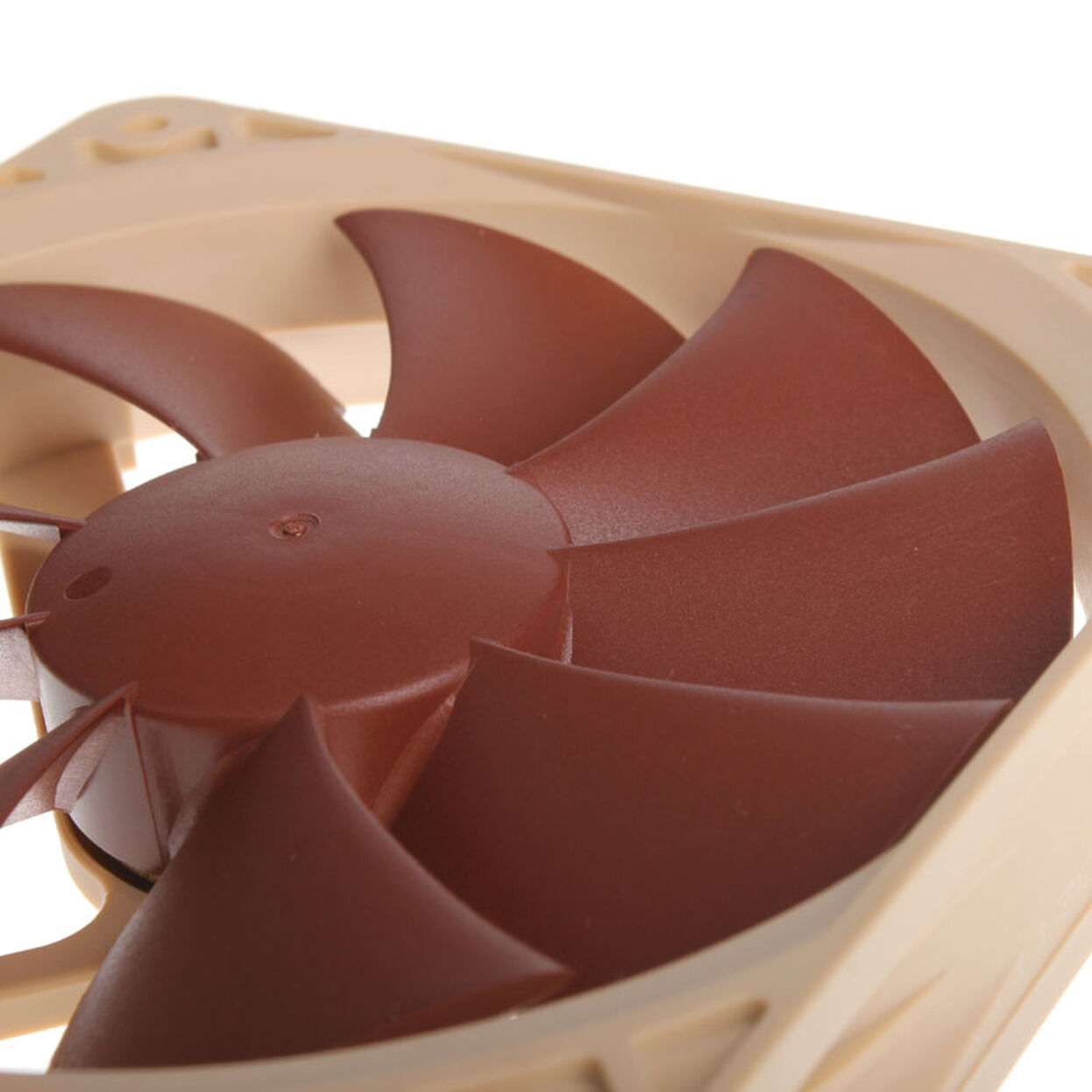

Pressure-optimized nine-blade impeller design for tight fin stacks and radiators

SSO (Self-Stabilizing Oil-Pressure) bearing for ultra-low noise and long-term reliability

PWM support via 4-pin connector for automatic speed control

Smooth Commutation Drive for minimal torque-induced noise and low electrical buzzing

Proven thermal performance with widespread compatibility in air and liquid cooling setups

Specifications:

• Dimensions: 120 x 120 x 25 mm

• Weight: 140 g

• Fan Speed: 300–1300 RPM ±10%

• Airflow: up to 92.3 m³/h

• Static Pressure: 1.68 mm H₂O

• Acoustics: max. 19.8 dB(A)

• Connector: 4-pin PWM

• Voltage Range: 12V DC

• Input Power: 1.08 W

• Bearing: SSO

• MTBF: >150,000 hours

Additional Features:

• Ideal for CPU coolers such as NH-U12P or radiators with dense fin layouts

• Comes with Low-Noise Adapter (L.N.A.) for quiet profile tuning

• Compatible with fan controllers and motherboard fan headers

• Available with optional colored anti-vibration pads via chromax accessories

Customer Benefits:
The NF-P12 PWM is a trusted solution for builders seeking reliable, quiet, and efficient cooling in pressure-sensitive applications. With automatic speed control and proven thermodynamic efficiency, it’s a go-to choice for performance-tuned yet silent builds.

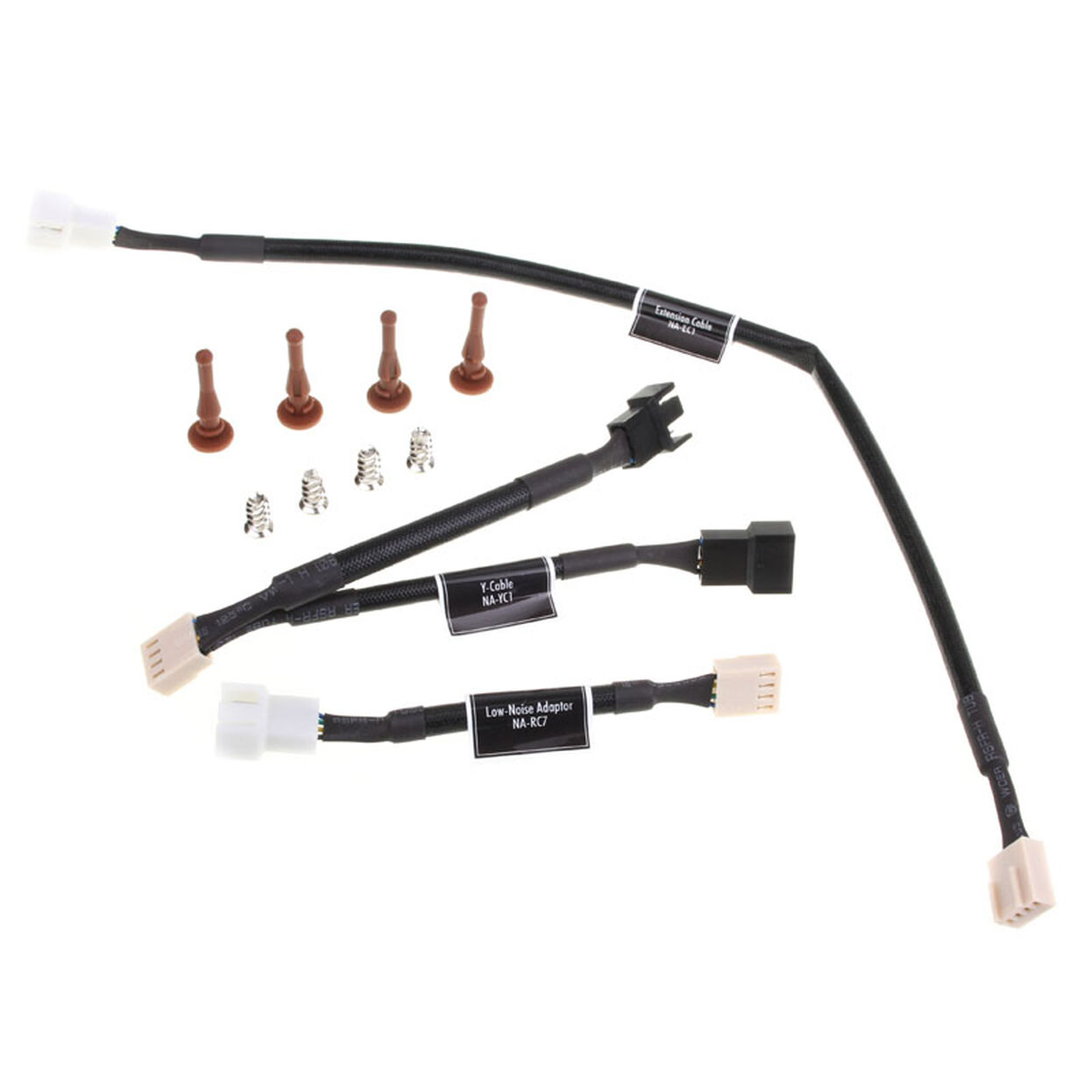

What’s in the Box:

• NF-P12 PWM 120mm fan

• Low-Noise Adapter (L.N.A.)

• 4 × anti-vibration mounts

• 4 × fan screws

• 30cm extension cable

• 3:4-pin Molex adapter

Compliance:
This product complies with CE, RoHS, REACH, and WEEE regulations. Developed and manufactured in Austria under Noctua’s strict quality and environmental standards.
