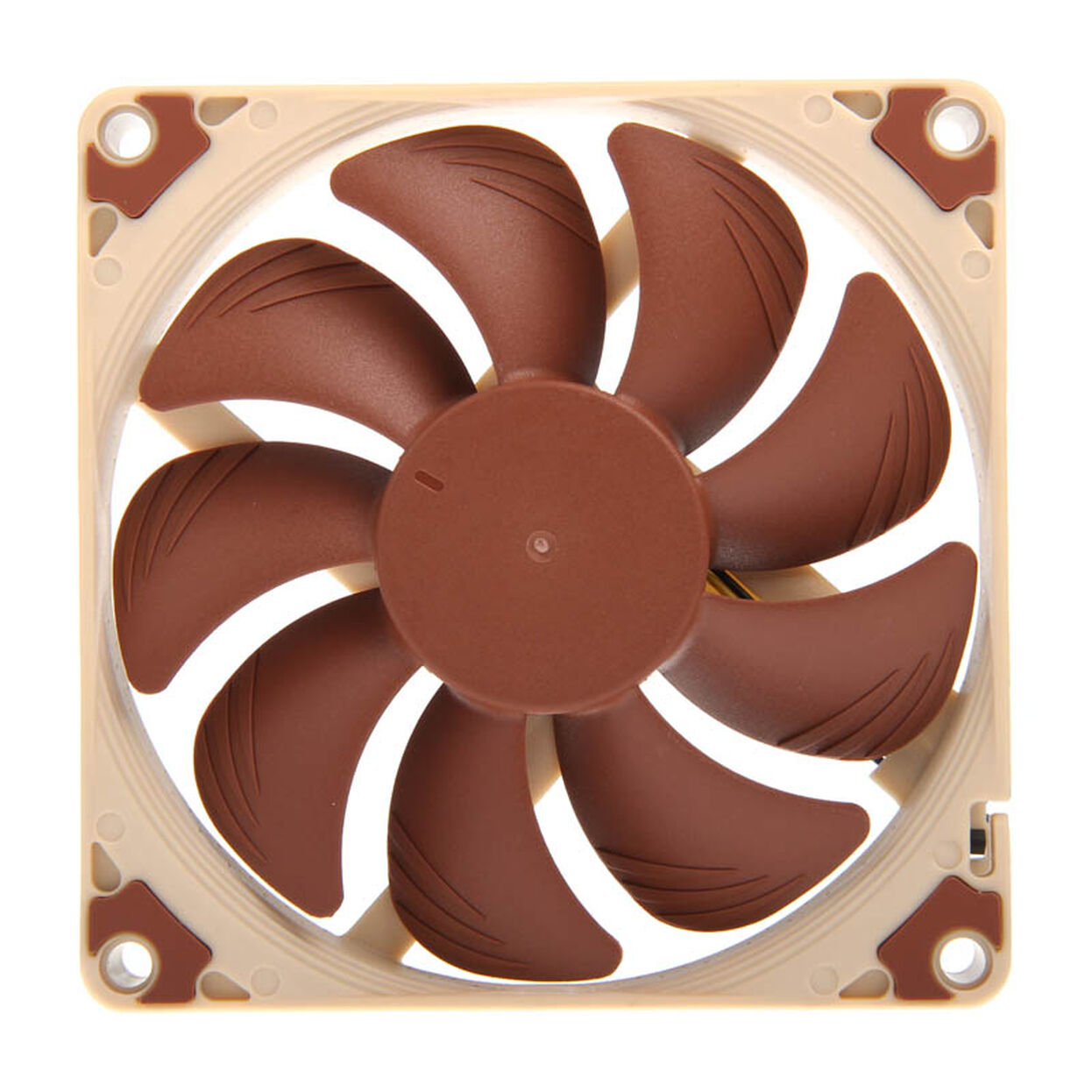

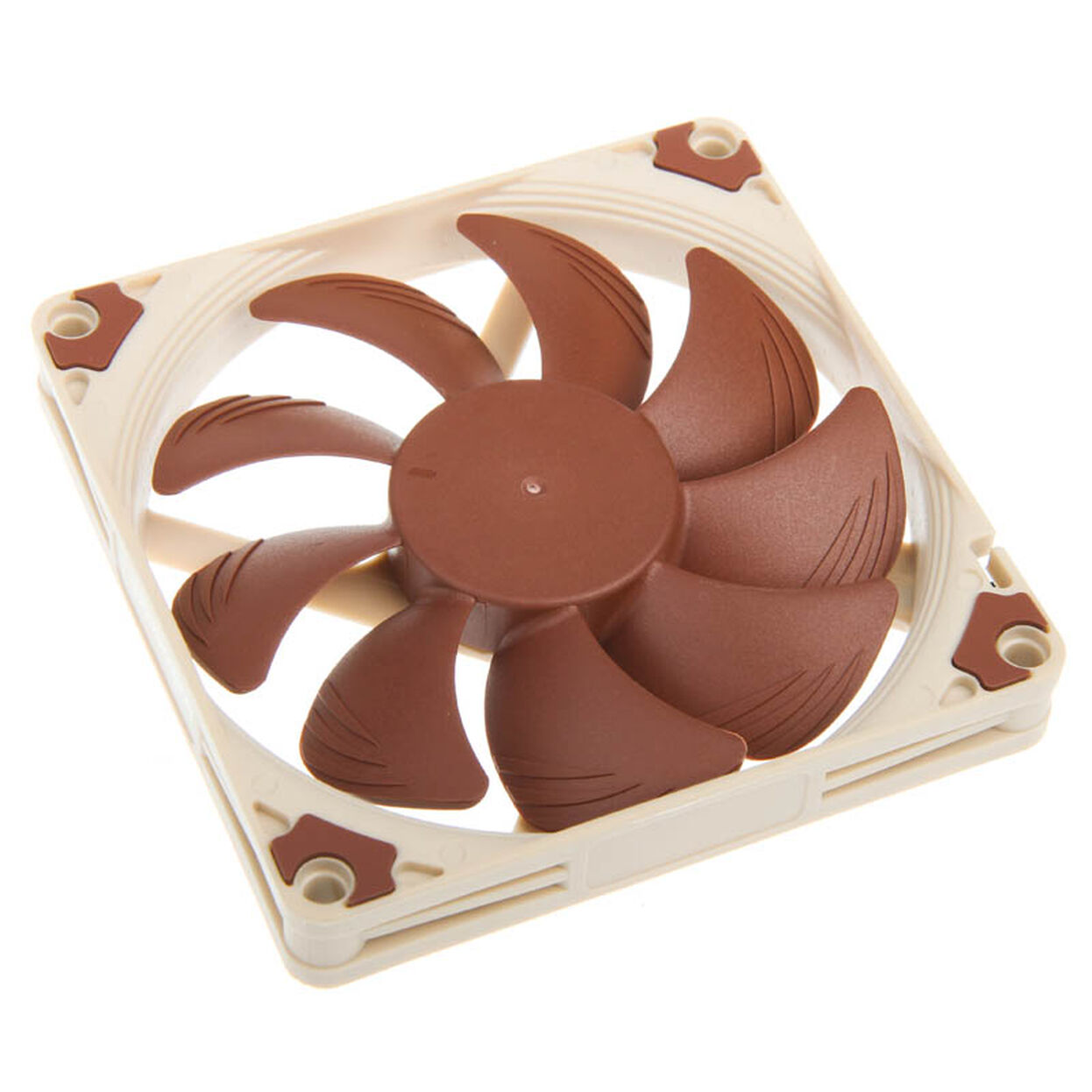

The Noctua NF-A9x14 PWM is a premium low-profile 92mm fan designed for space-constrained applications that demand high airflow and precise speed control. At just 14mm thick, it’s ideal for compact HTPCs, low-profile CPU coolers, and slim enclosures. With Noctua’s signature aerodynamic design and SSO2 bearing technology, it delivers excellent thermal performance with minimal acoustic impact.

Key Features:

• Ultra-slim 92mm profile (14mm thickness) for tight installation spaces

• PWM support for automatic, demand-based speed regulation

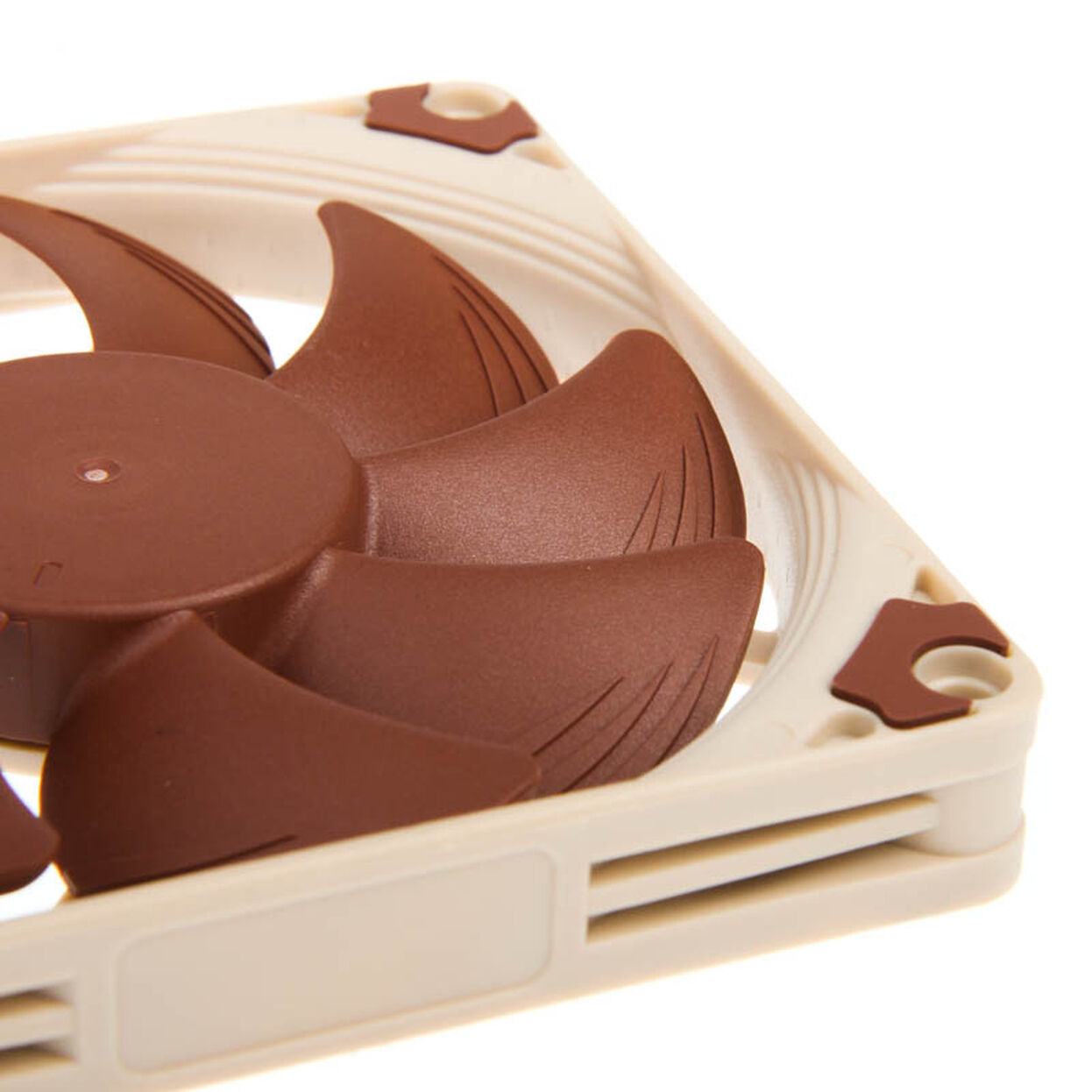

• Flow Acceleration Channels and AAO (Advanced Acoustic Optimization) frame

• SSO2 bearing for whisper-quiet performance and long-term reliability

• Integrated anti-vibration pads for reduced structural noise

Specifications:

• Dimensions: 92 x 92 x 14 mm

• Weight: 80 g

• Materials: Fiberglass-reinforced polyamide (PA-GF)

• Connectivity / Compatibility: 4-pin PWM fan header

• Bearing: SSO2 (Self-Stabilising Oil-pressure Bearing)

• Max Rotational Speed: 2200 RPM

• Max Airflow: 50.5 m³/h

• Acoustical Noise: 19.9 dB(A)

• Static Pressure: 1.64 mm H₂O

• Input Power: 1.32 W

• Voltage Range: 12V DC (typical), 4–12V PWM regulated

Additional Features:

• Slim profile ideal for 2U server cases, ITX builds, and low-clearance heatsinks

• Smooth Commutation Drive (SCD) minimizes PWM switching noise

• Compatible with Noctua’s NH-L9 series and other low-profile coolers

• MTTF rated at 150,000 hours

Customer Benefits:
A perfect fit for users building compact systems with strict space limitations, the NF-A9x14 PWM balances airflow, low noise, and dependability in a remarkably slim form factor. Its PWM capability ensures quiet operation during light loads and responsive cooling when needed.

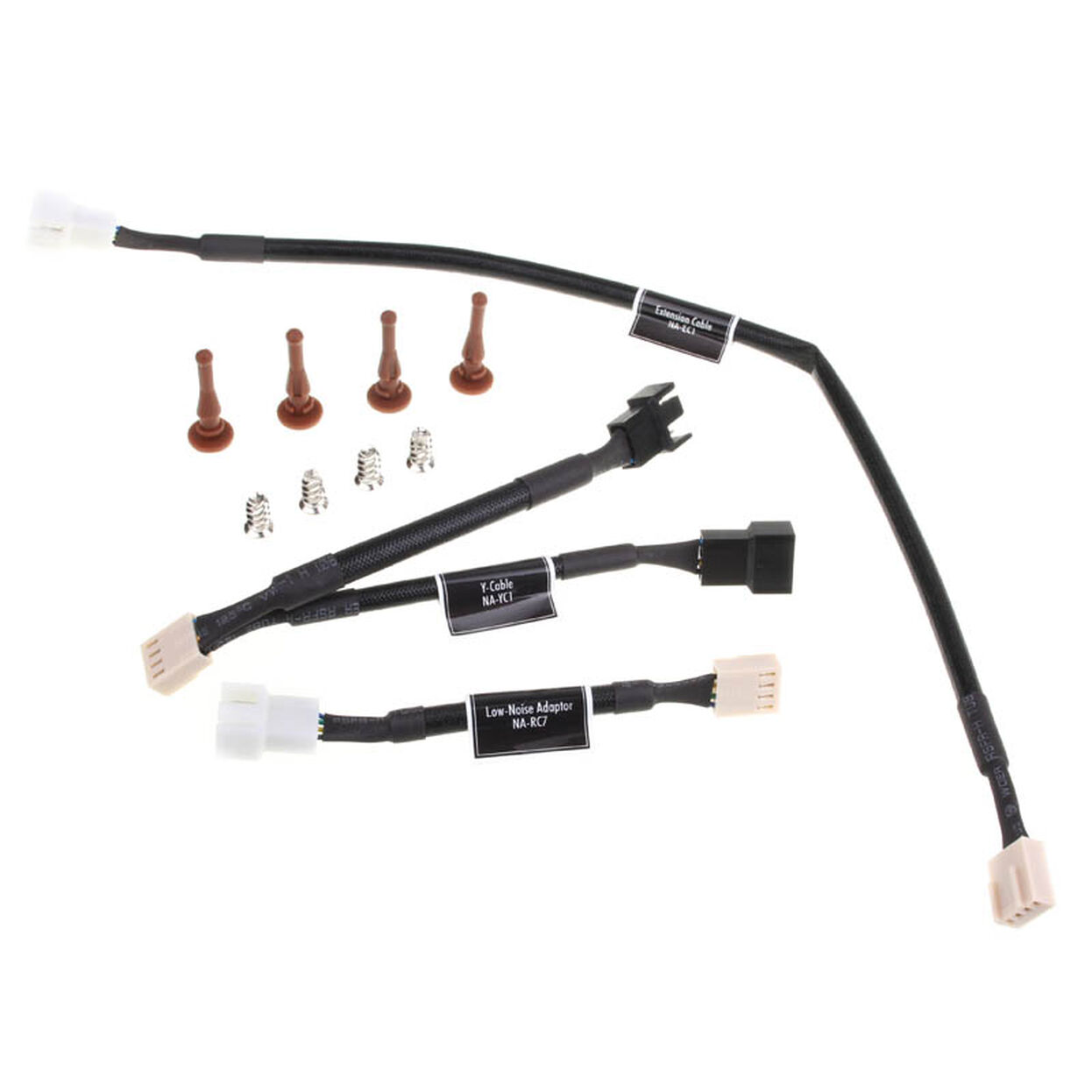

What’s in the Box:

• NF-A9x14 PWM Fan

• Low-Noise Adapter (L.N.A.)

• 30cm Extension Cable

• 4-pin Y-Cable

• 4x Vibration-Compensated Fan Screws

• 4x Standard Fan Screws

• User Manual

Compliance:
Complies with CE, RoHS, REACH, and WEEE regulations. Designed for safe, quiet, and durable use in high-efficiency, space-limited systems.
