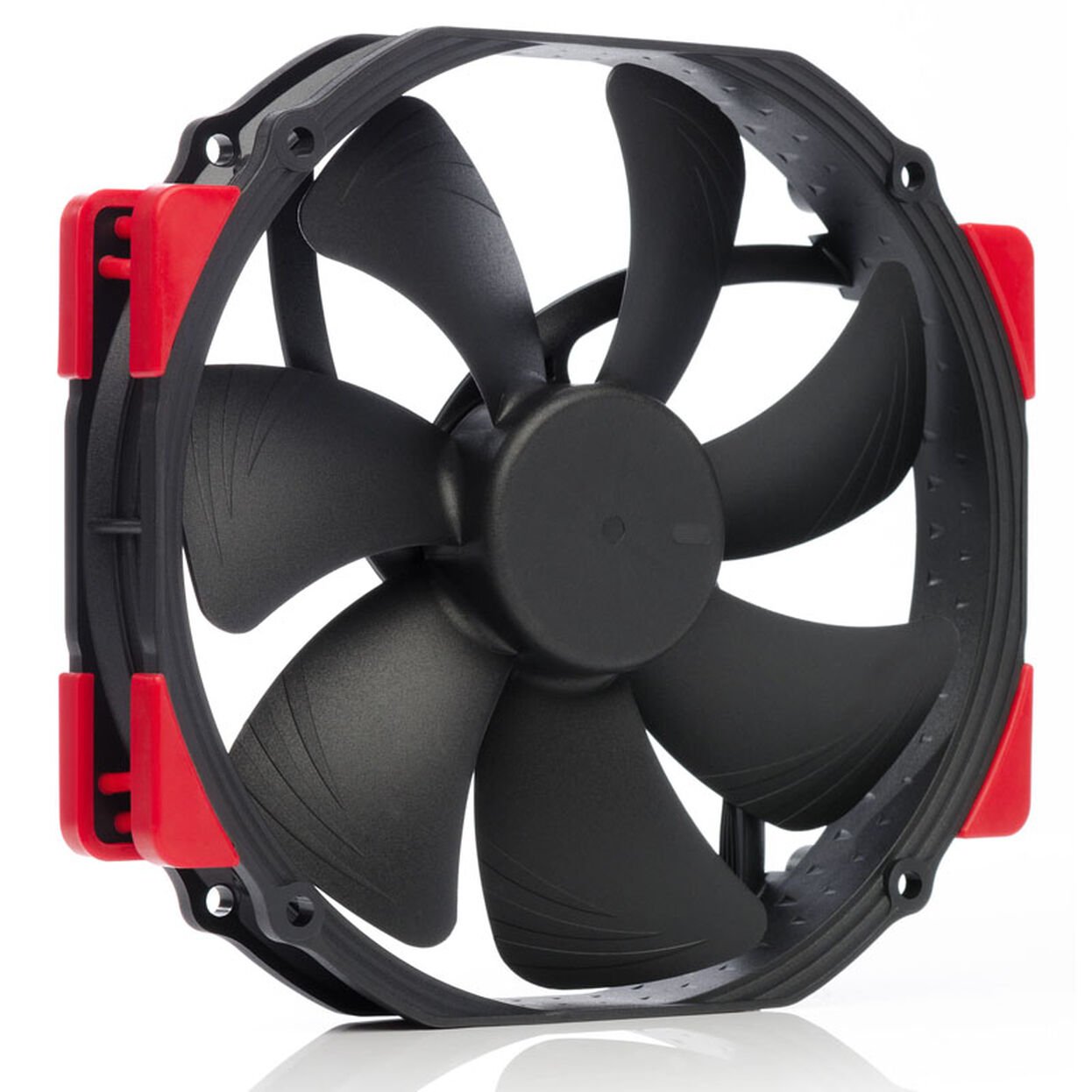

The Noctua NF-A15 HS-PWM chromax.black.swap is a high-performance 140mm fan with a round frame and 120mm mounting hole spacing, making it ideal for CPU coolers like the NH-U12 series and other heatsinks designed for 120mm fans. Featuring a high static pressure design, SSO2 bearing, and full PWM support, this chromax edition offers a fully black aesthetic with swappable colored anti-vibration pads to match your build.

Key Features:

• High-static-pressure 140mm fan with 120mm mounting compatibility

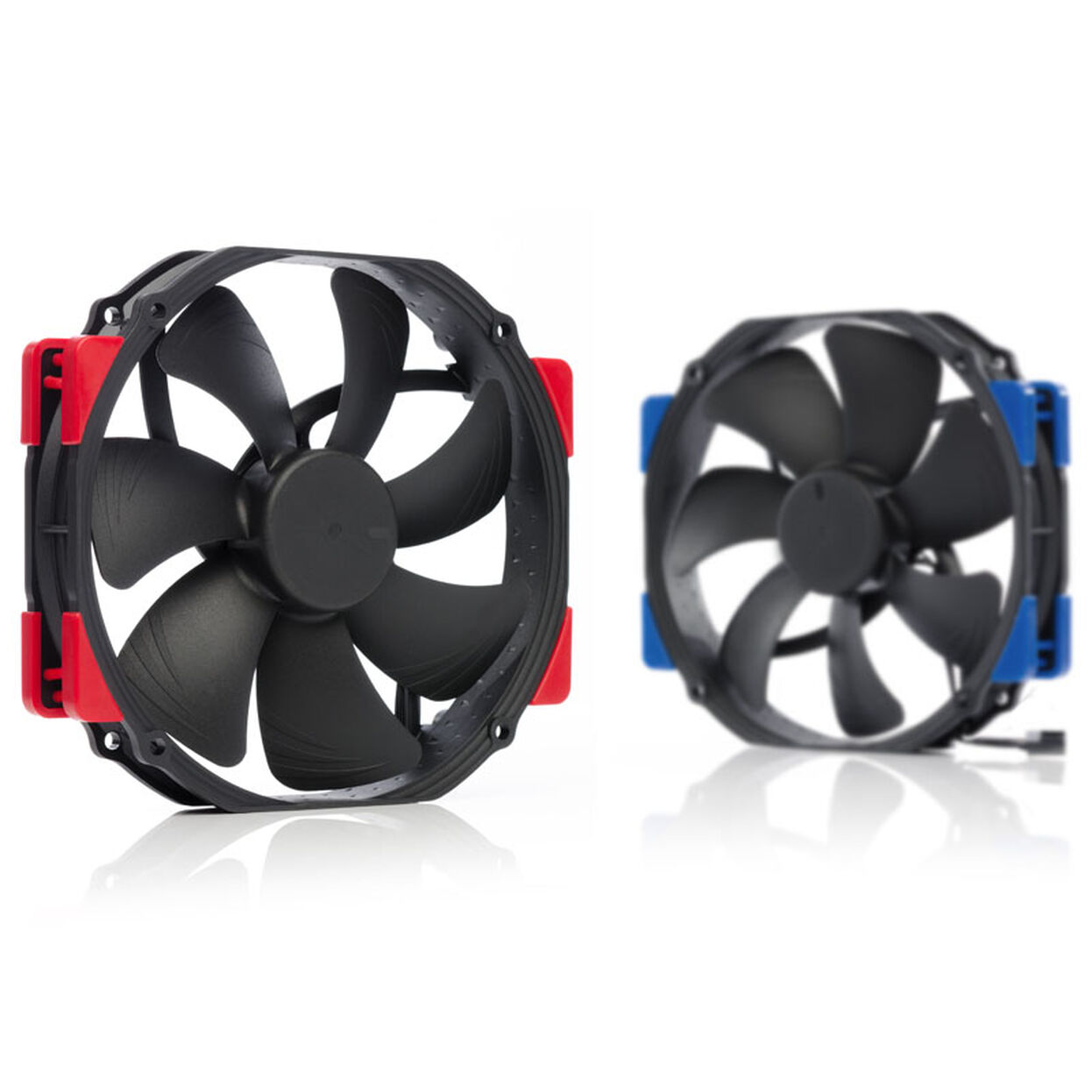

• chromax.black.swap edition with 6 sets of colored anti-vibration pads

• Round frame design ideal for CPU heatsinks and thermal modules

• Advanced Acoustic Optimization frame with Flow Acceleration Channels

• SSO2 bearing and Smooth Commutation Drive 2 for long-lasting silent operation

Specifications:

• Dimensions: 140 x 150 x 25 mm

• Weight: 200 g

• Rotational Speed: 1500 RPM ±10%

• Rotational Speed w/ L.N.A.: 1200 RPM ±10%

• Minimum Speed: ~300 RPM

• Airflow: 140.2 m³/h

• Airflow w/ L.N.A.: 115.5 m³/h

• Acoustical Noise: 24.6 dB(A)

• Noise w/ L.N.A.: 19.2 dB(A)

• Static Pressure: 2.08 mmH₂O

• Static Pressure w/ L.N.A.: 1.18 mmH₂O

• Connector: 4-pin PWM

• Voltage Range: 12V DC

• Bearing Type: SSO2

• MTBF: >150,000 hours

Compatibility:
Perfect for CPU coolers requiring 120mm mounting holes (105mm spacing) but with space for a 140mm fan. Compatible with heatsinks like the NH-U12S, NH-U14S, and modern radiators or cases that support 140mm x 150mm fans.

Additional Features:

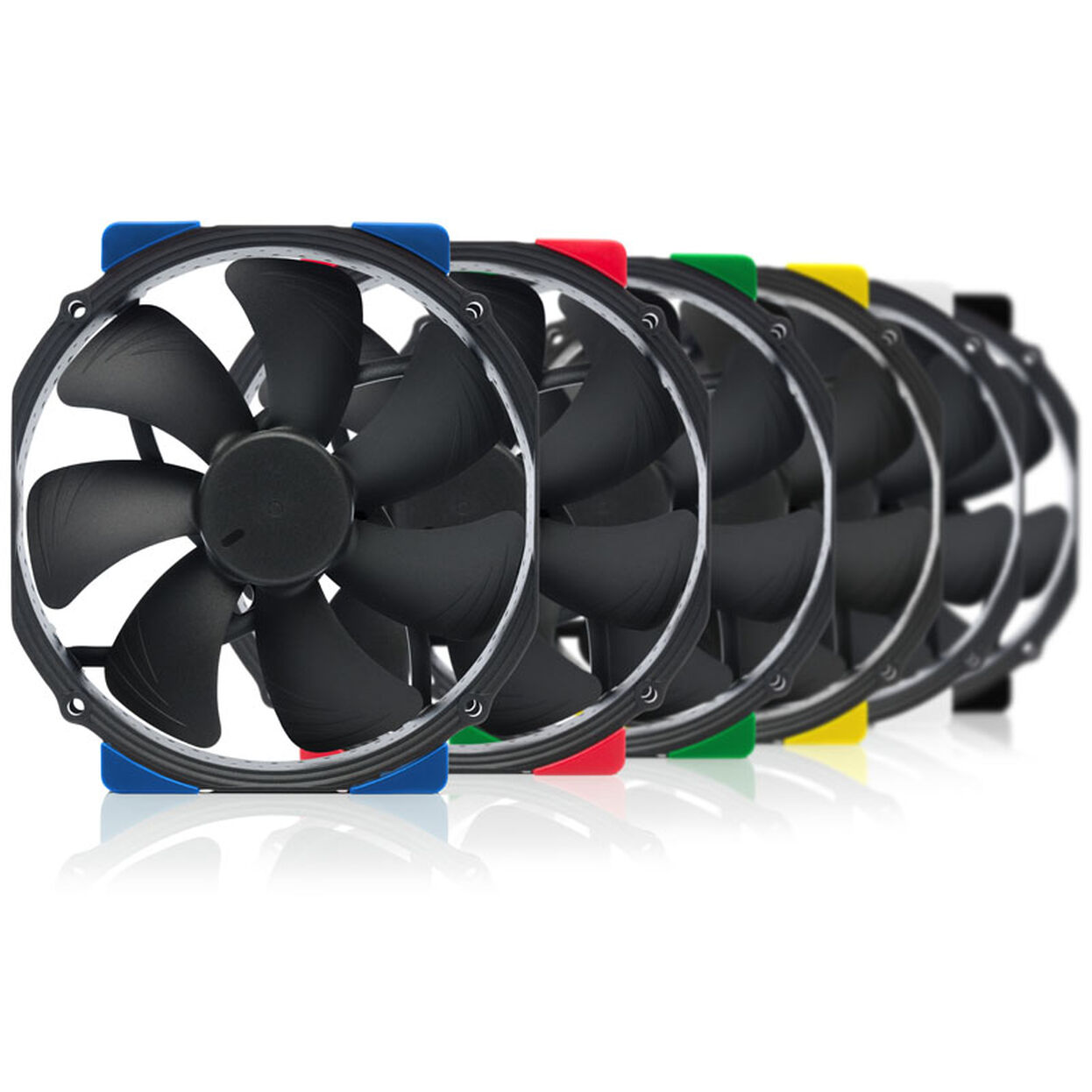

• Includes 6 sets of swappable anti-vibration pads (black, red, blue, green, yellow, white)

• PWM support for automatic speed control

• Low-Noise Adapter (L.N.A.) and extension cable included

• Sleek chromax.black design for stealth or themed builds

• 6-year manufacturer warranty

Customer Benefits:
Designed for users who want top-tier thermal performance without compromising on visual customization or acoustic comfort. The NF-A15 HS-PWM chromax.black.swap is an exceptional choice for high-end builds where quiet airflow and design flexibility are key.

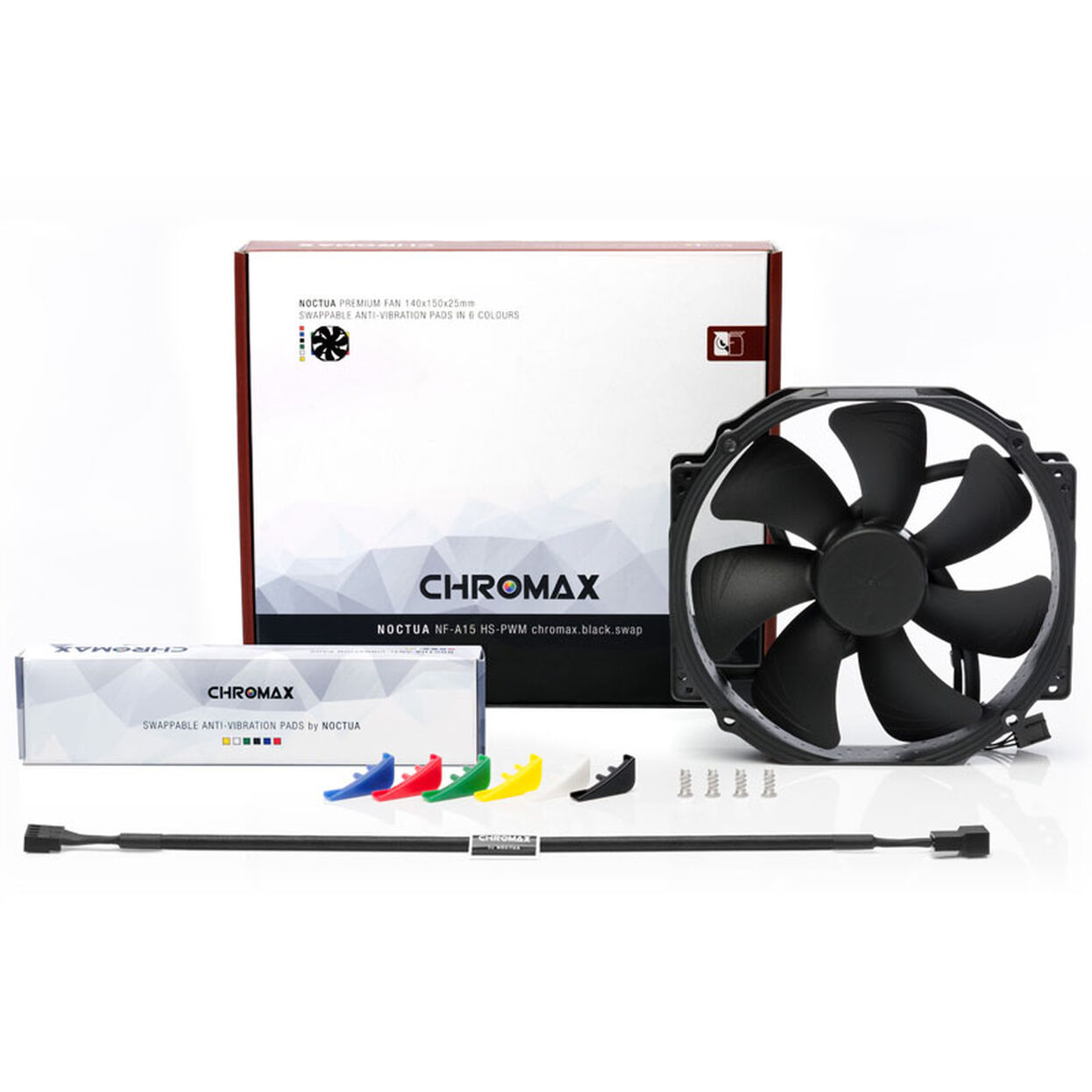

What’s in the Box:

• NF-A15 HS-PWM chromax.black.swap fan

• 6x sets of anti-vibration pads in black, red, blue, green, yellow, white

• Low-Noise Adapter (L.N.A.)

• 30cm extension cable

• 4x fan screws

Compliance:
This product meets all applicable European and international standards (CE, RoHS, REACH, WEEE, etc.). It has been designed and tested for maximum safety, performance, and environmental responsibility.
