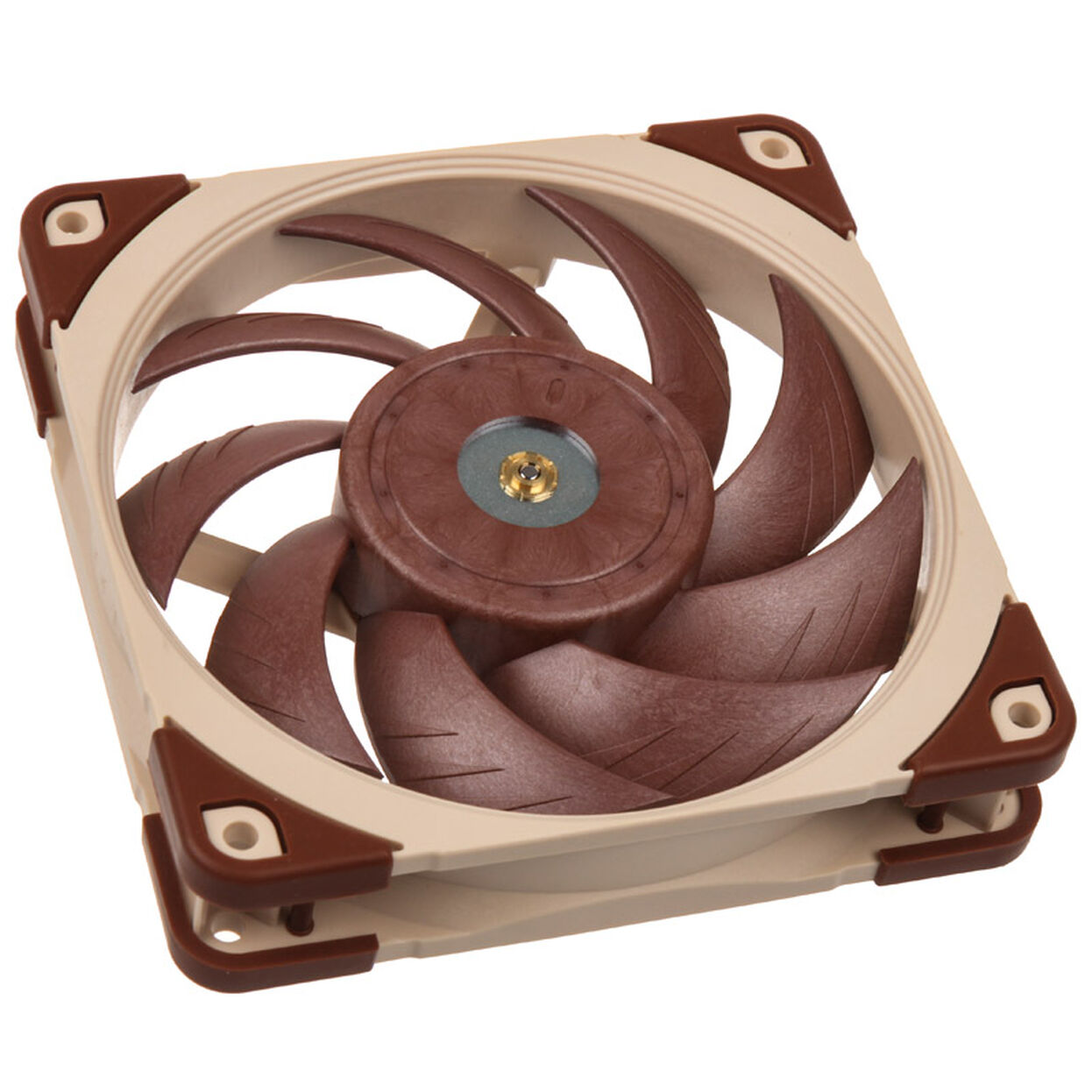

The Noctua NF-A12x25 LS-PWM is the low-speed edition of Noctua’s flagship 120mm fan, designed specifically for users who prioritize ultra-quiet operation without compromising build quality or thermal efficiency. Using the same advanced Sterrox® LCP blade design, SSO2 bearing, and precision frame geometry as the standard NF-A12x25, this model is optimized for near-silent performance in low-noise builds, HTPCs, and acoustically sensitive workstations.

Key Features:

Max speed of 1200 RPM for silent airflow under PWM control

Sterrox® liquid-crystal polymer construction with ultra-tight tolerances

SSO2 bearing system for superior long-term silence and durability

Flow Acceleration Channels and stepped inlet design to reduce noise artifacts

Ideal for passive or semi-passive systems where silence is critical

Specifications:

• Dimensions: 120 x 120 x 25 mm

• Connector: 4-pin PWM

• Max Speed: 1200 RPM ±10%

• Min Speed: 400 RPM ±20%

• Max Airflow: 55.7 m³/h

• Max Acoustics: 12.1 dB(A)

• Static Pressure: 0.82 mm H₂O

• Voltage: 12V

• Power Consumption: 0.6 W

• Input Current: 0.05 A

• Bearing Type: SSO2

• Material: Sterrox® LCP (blade & frame)

• MTTF: >150,000 hours

Additional Features:

• Includes Low-Noise Adapter for further silent operation

• 4 vibration-isolating rubber corners pre-installed

• Excellent choice for quiet airflow in premium chassis

• PWM control allows automatic speed adjustment based on system temperature

Customer Benefits:
The NF-A12x25 LS-PWM brings state-of-the-art acoustics and aerospace-grade materials to silence-focused builds. Whether cooling a passive workstation or optimizing airflow in a high-end media PC, it delivers excellence in stealth mode.

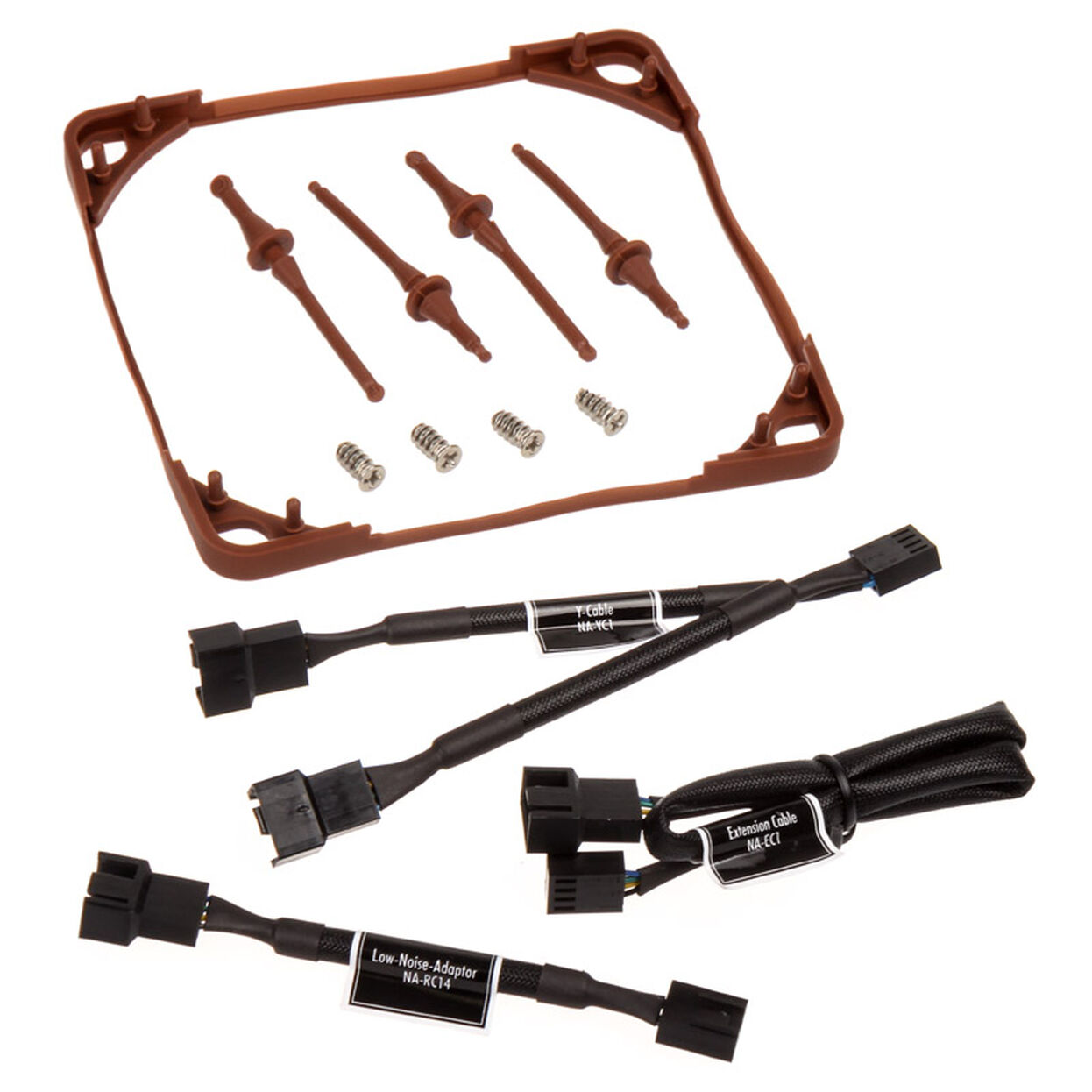

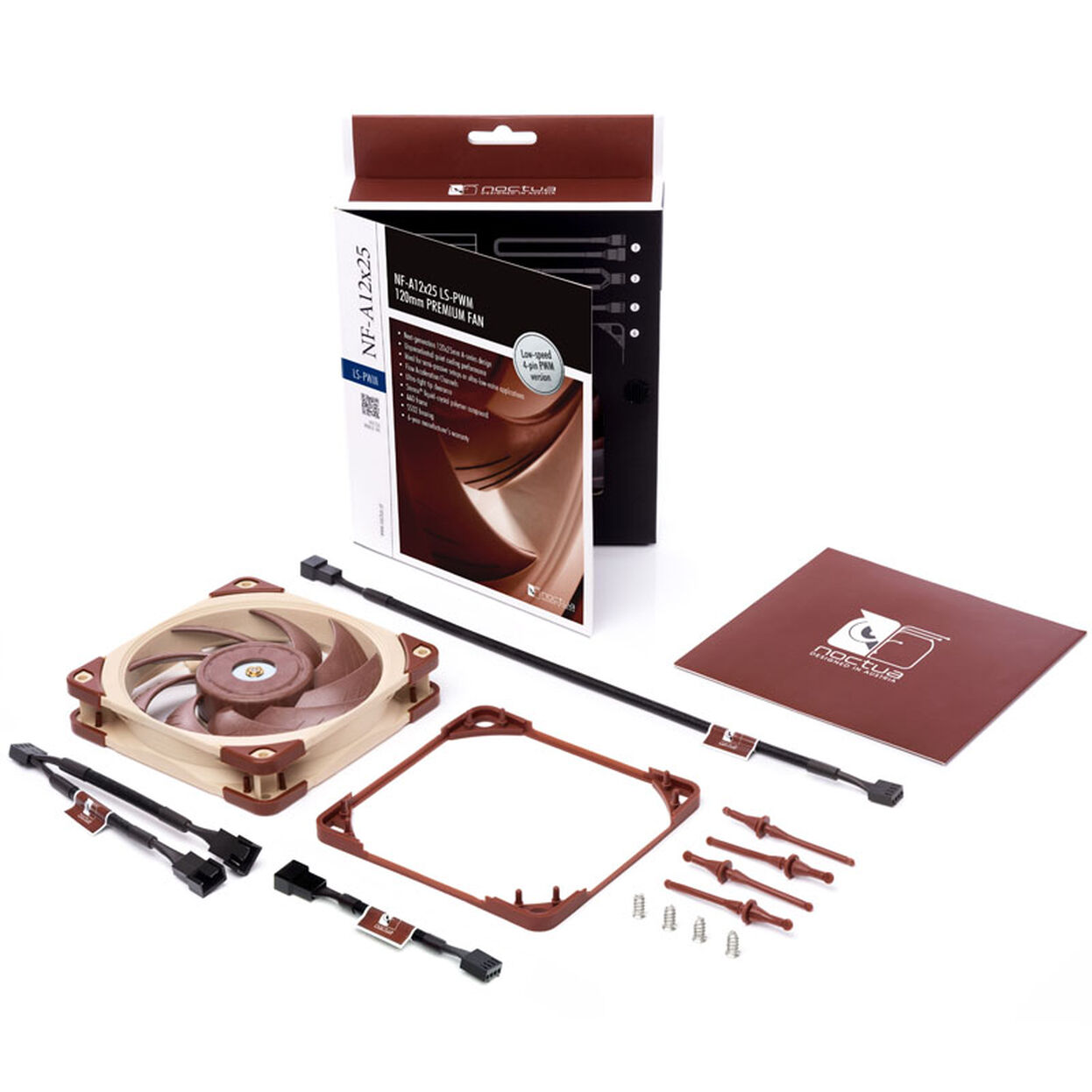

What’s in the Box:

• 1 × NF-A12x25 LS-PWM fan

• 1 × Low-Noise Adapter (L.N.A.)

• 4 × Anti-vibration mounts

• 4 × Fan screws

• 1 × 30cm extension cable

• 1 × Y-split cable for PWM control

• Illustrated installation manual

Compliance:
Fully compliant with CE, RoHS, REACH, and WEEE environmental directives. Precision-engineered in Austria for sustainable performance and acoustic excellence.

Manufacturer Contact:
Company Name: Noctua GmbH
Address: Josef-Preis-Allee 18, 8020 Graz, Austria
Email: support(at)noctua(dot)at
