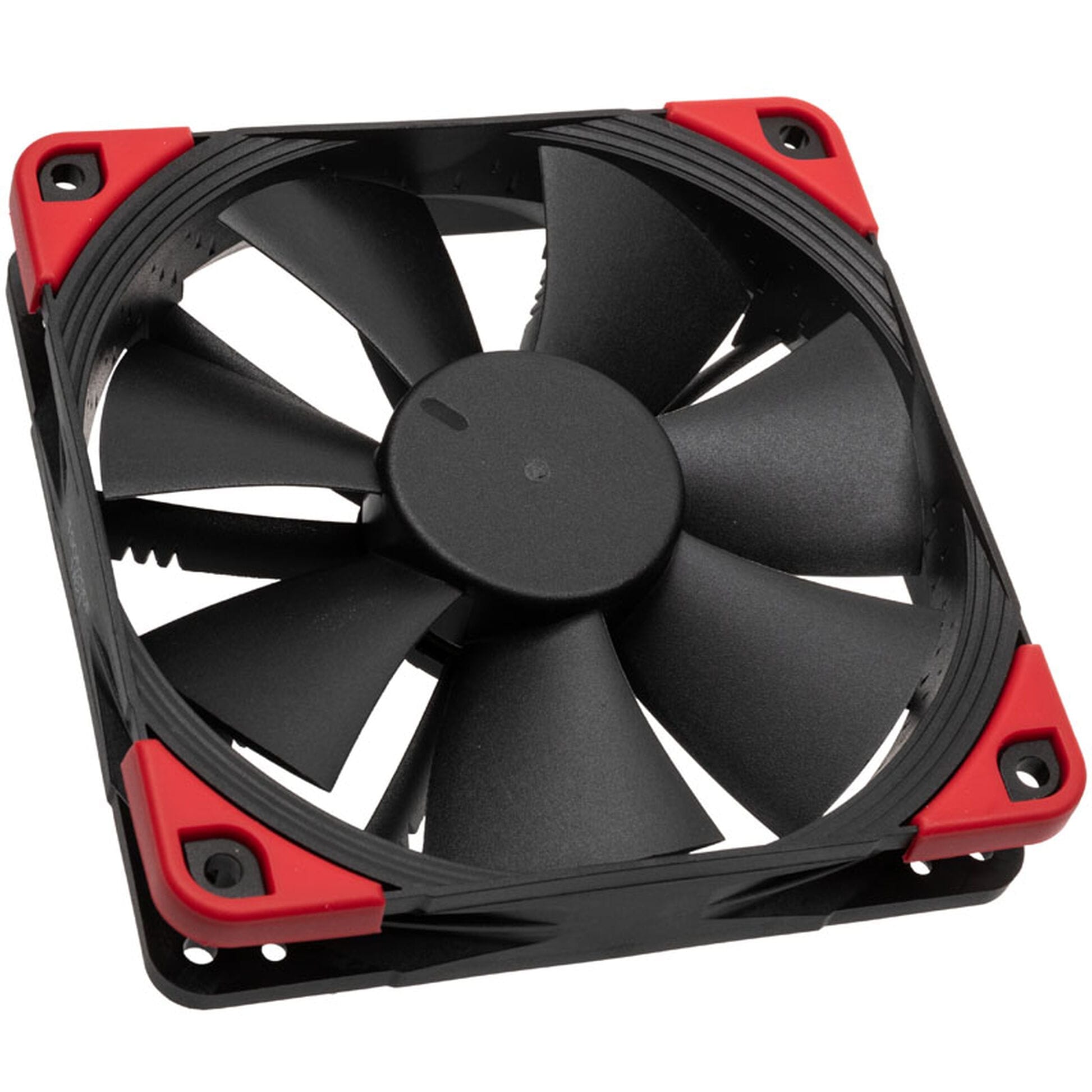

The Noctua NF-F12 PWM chromax.black.swap is a high-performance 120mm fan engineered for focused airflow applications such as CPU coolers and radiators. Featuring full 4-pin PWM control for automatic speed adjustment and an all-black aesthetic with six sets of swappable colored anti-vibration pads, it offers elite cooling performance combined with customizable style and ultra-quiet operation.

Key Features:

• Specialized blade design for high static pressure and focused airflow

• 4-pin PWM support for precise, dynamic fan speed regulation

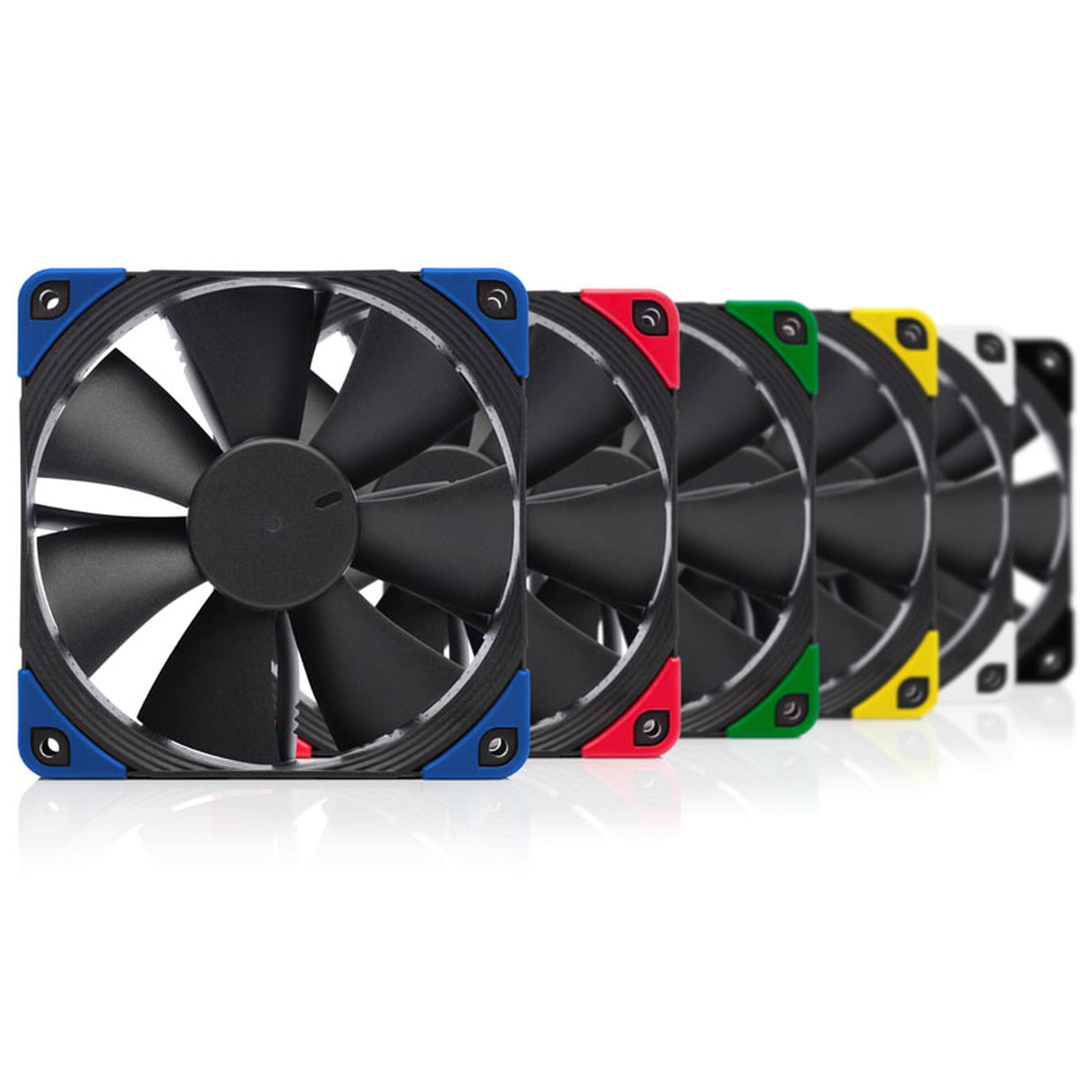

• chromax.black.swap edition with six interchangeable vibration-dampening pads (black, red, blue, green, yellow, white)

• Advanced Acoustic Optimization (AAO) frame and Flow Acceleration Channels

• SSO2 bearing technology for quiet, durable operation

Specifications:

• Dimensions: 120 x 120 x 25 mm

• Weight: 158 g

• Materials: Fiberglass-reinforced polyamide (PA-GF), Sterrox® LCP impeller

• Connectivity / Compatibility: 4-pin PWM fan header

• Bearing: SSO2 (Self-Stabilising Oil-pressure Bearing)

• Max Rotational Speed: 1500 RPM

• Max Airflow: 93.4 m³/h

• Acoustical Noise: 22.4 dB(A)

• Static Pressure: 2.61 mm H₂O

• Input Power: 1.56 W

• Voltage Range: 12V DC (typical), PWM regulated

Additional Features:

• Includes Low-Noise Adapter (L.N.A.) for optional speed reduction and noise control

• Smooth Commutation Drive reduces PWM switching noise

• Ideal for radiator cooling and high-pressure airflow needs

• Backed by Noctua’s 6-year manufacturer warranty and 150,000h MTTF

Customer Benefits:
The NF-F12 PWM chromax.black.swap is perfect for users requiring powerful, quiet cooling with a customizable look. Its focused airflow and pressure make it ideal for tight fin stacks and radiator setups, while the swappable pads offer personalization and vibration reduction.

What’s in the Box:

• NF-F12 PWM chromax.black.swap Fan

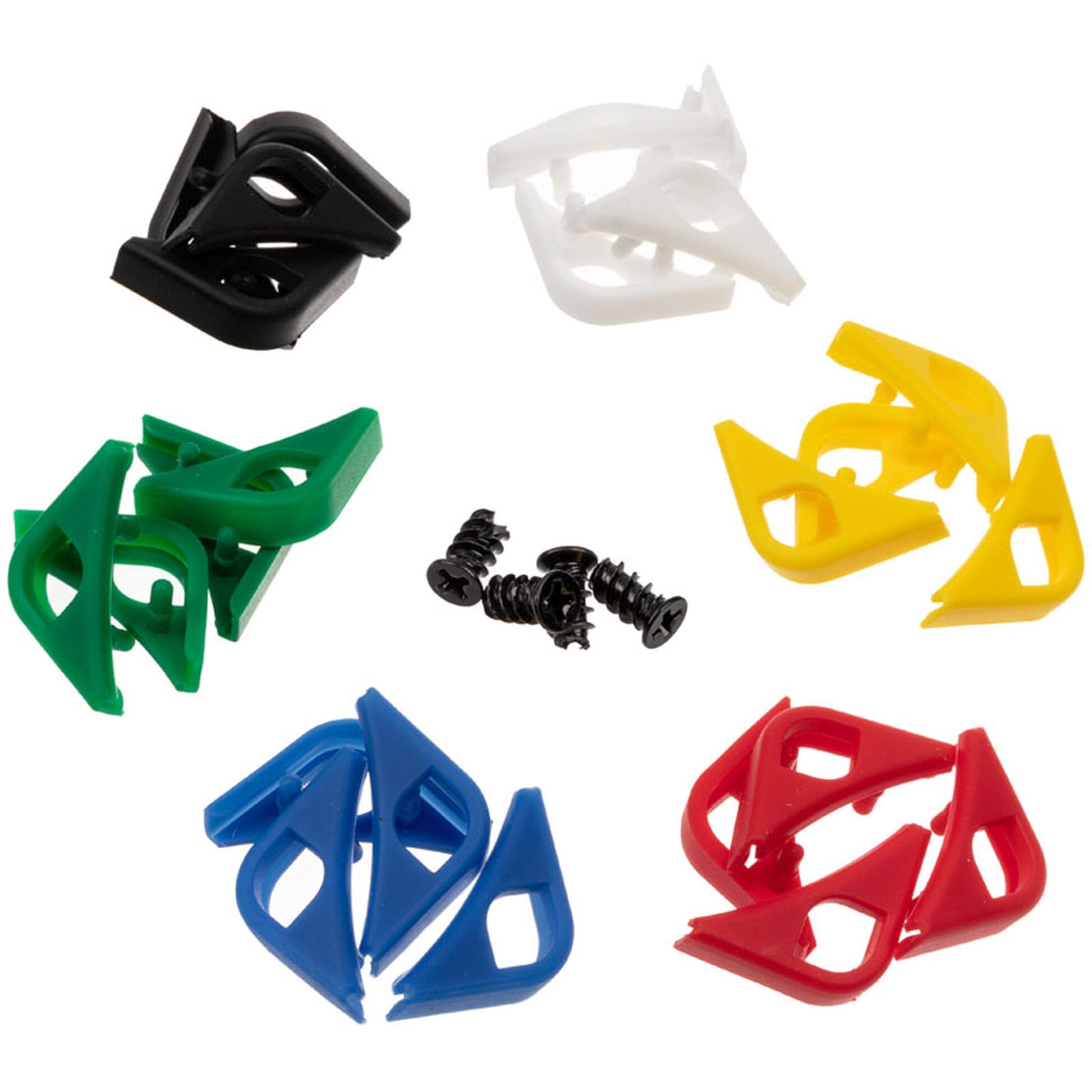

• 6x Sets of Anti-Vibration Pads (black, red, blue, green, yellow, white)

• Low-Noise Adapter (L.N.A.)

• 30cm Extension Cable

• 4-pin Y-Cable

• 4x Vibration-Compensated Fan Screws

• 4x Standard Fan Screws

• User Manual

Compliance:
Fully compliant with CE, RoHS, REACH, and WEEE directives. Designed for reliable, silent cooling with environmental responsibility.
