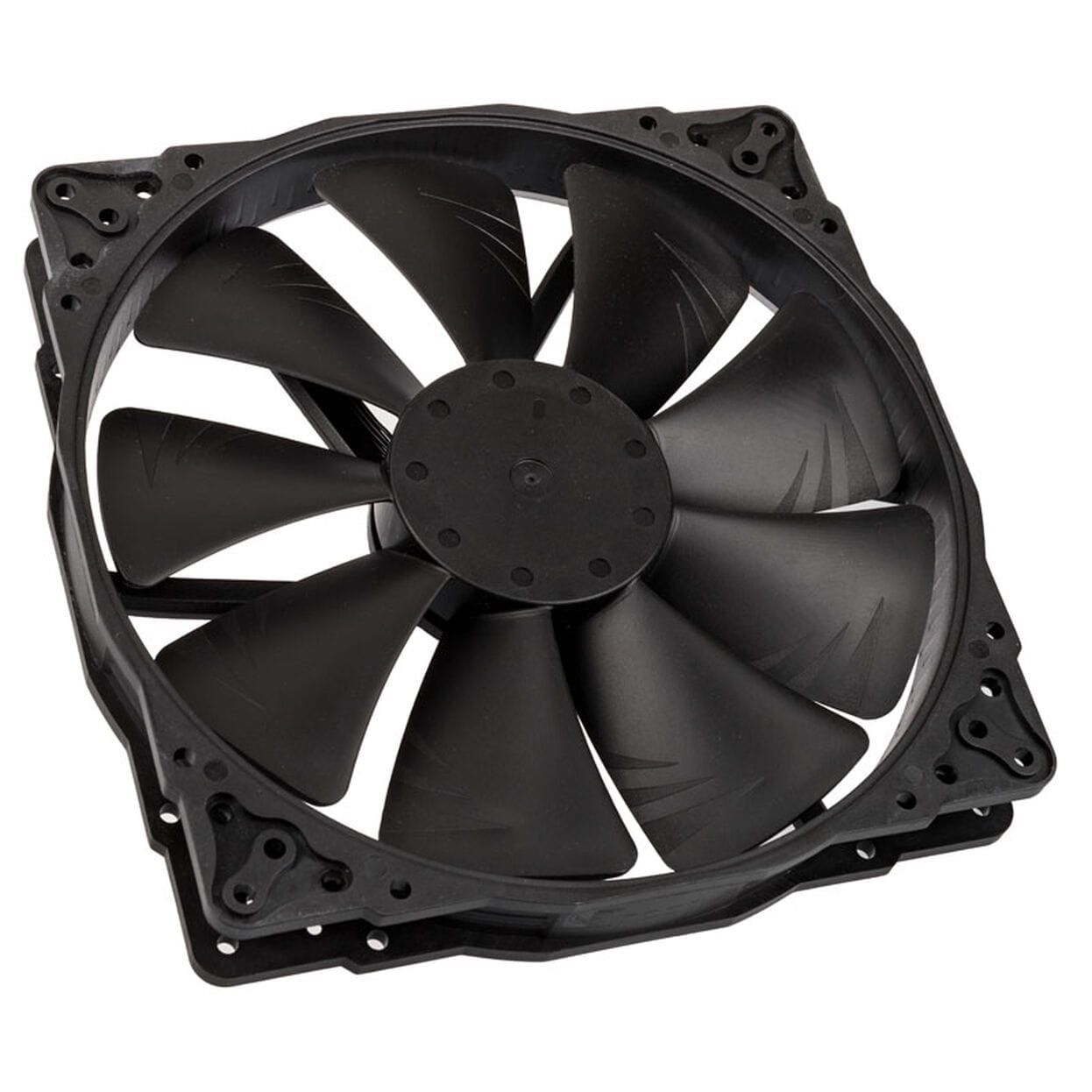

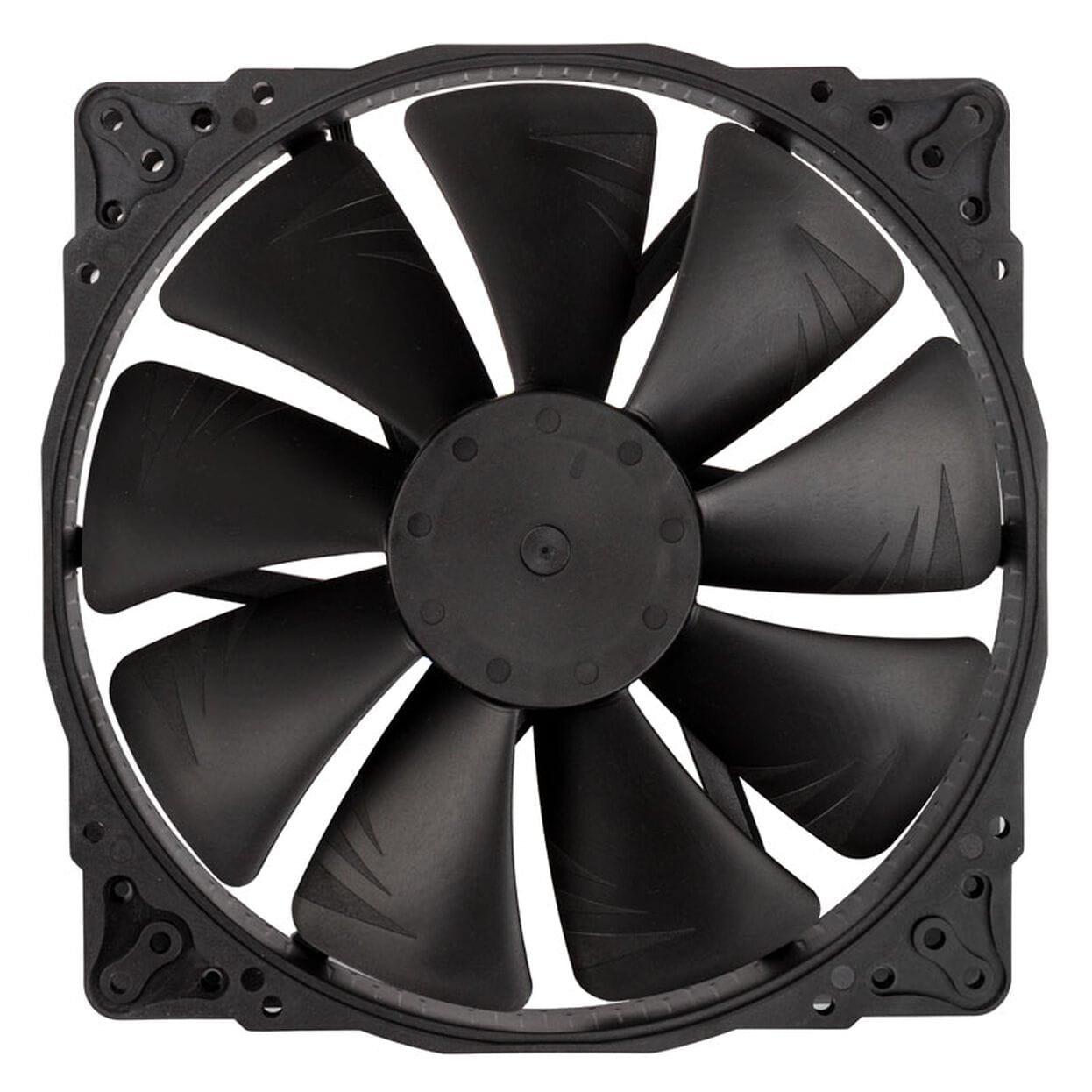

The Noctua NF-A20 PWM chromax.black.swap is a high-performance 200mm cooling fan featuring Noctua’s signature engineering in a fully black aesthetic with swappable anti-vibration pads. Designed for quiet airflow in large-format PC cases, the fan combines massive airflow with PWM-based speed control, making it an excellent solution for enthusiasts who demand silent operation, cooling efficiency, and visual flexibility.

Key Features:

• Massive 200mm diameter with square frame for optimal case compatibility

• PWM support for automatic fan speed control via 4-pin header

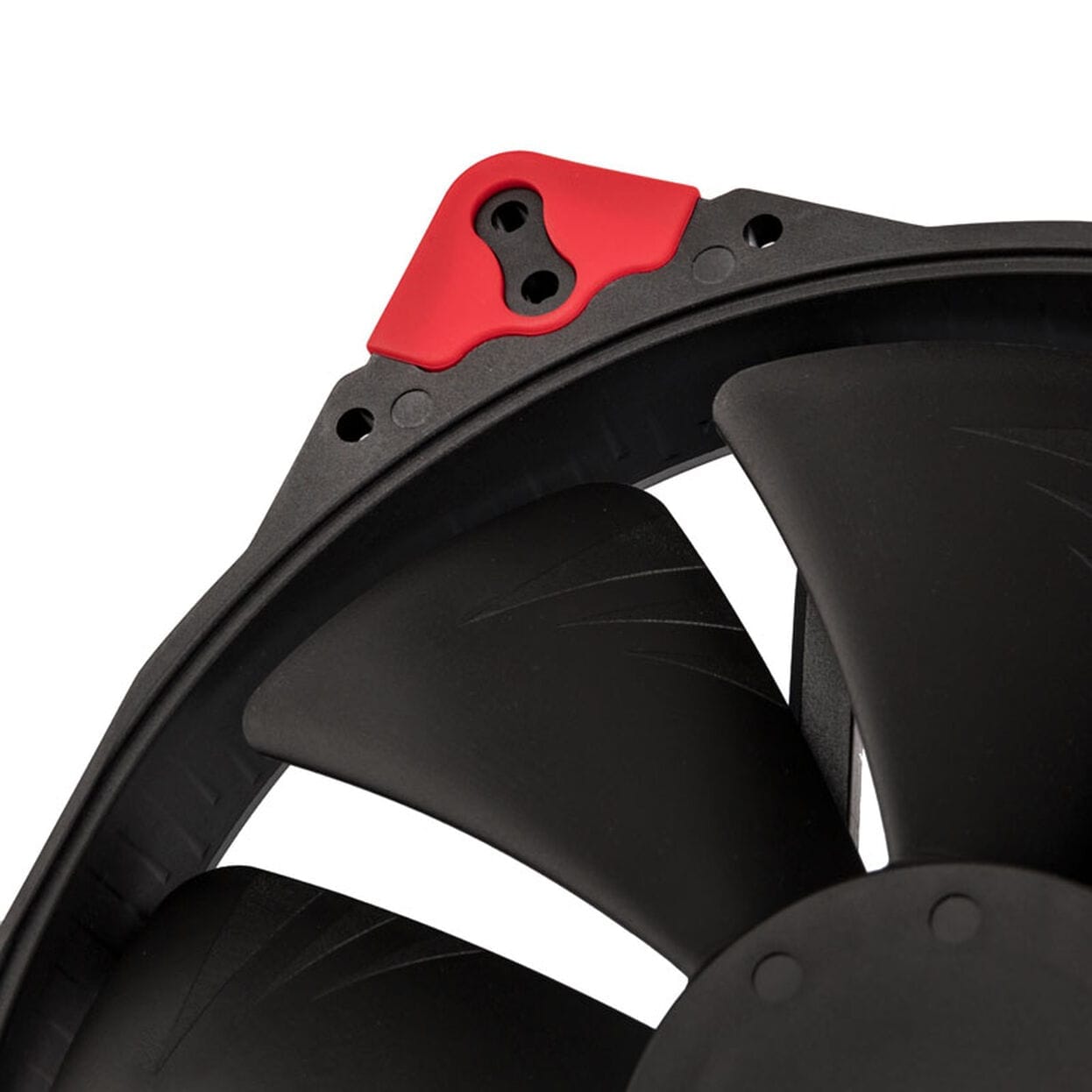

• Fully black chromax edition with interchangeable anti-vibration pads in multiple colors

• Flow Acceleration Channels and AAO (Advanced Acoustic Optimization) frame

• SSO2 bearing system for near-silent operation and ultra-long lifespan

Specifications:

• Dimensions: 200 x 200 x 30 mm

• Weight: 300 g

• Materials: Fiberglass-reinforced polyamide (PA-GF)

• Connectivity / Compatibility: 4-pin PWM fan header

• Bearing: SSO2 (Self-Stabilising Oil-pressure Bearing)

• Max Rotational Speed: 800 RPM

• Max Airflow: 146.9 m³/h

• Acoustical Noise: 18.1 dB(A)

• Static Pressure: 0.71 mm H₂O

• Input Power: 0.96 W

• Voltage Range: 12V DC (typical), 5–12V operational

Additional Features:

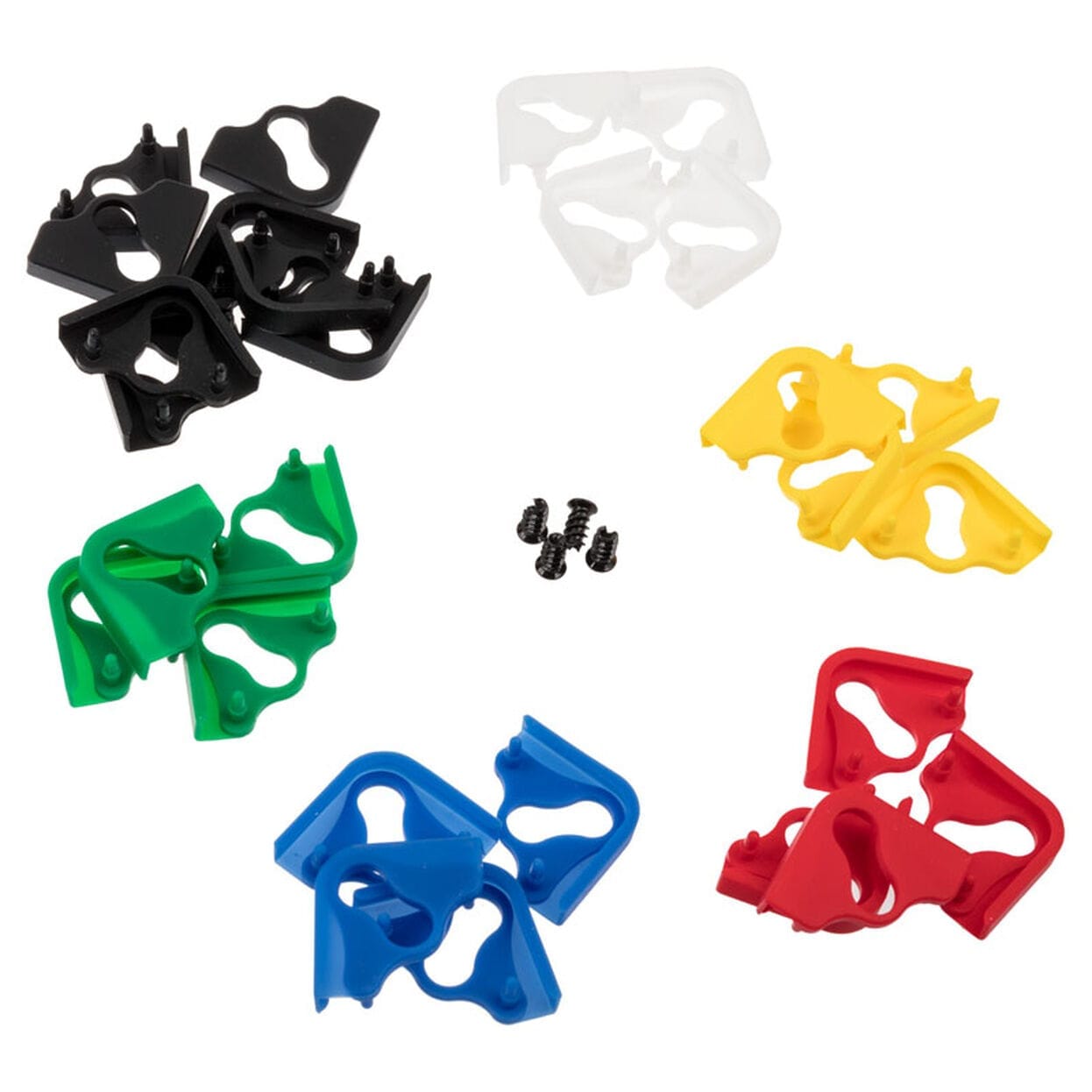

• Includes six sets of swappable anti-vibration pads (red, blue, green, yellow, white, black)

• Ideal for high-end cases like Fractal, Phanteks, or modded airflow-focused rigs

• Features integrated cable routing notches and stepped inlet design for reduced turbulence

• 154x154mm mounting hole spacing (compatible with select 200mm fan mounts)

• Rated for 150,000h MTTF

Customer Benefits:
Perfect for builders who need both silent cooling and customization, the NF-A20 PWM chromax.black.swap brings elite Noctua performance and modular aesthetics to large-format gaming or workstation builds. It ensures efficient low-RPM airflow and precise speed control while enhancing visual integration.

What’s in the Box:

• NF-A20 PWM chromax.black.swap Fan

• 6x Sets of Anti-Vibration Pads (black, red, blue, green, yellow, white)

• 4x Standard Fan Screws

• User Manual

Compliance:
This product meets all major international safety and environmental standards (CE, RoHS, REACH, WEEE). It is tested for thermal efficiency, signal integrity, and mechanical durability under real-world conditions.

Manufacturer Contact:
Company Name: Noctua
Address: Industriestrasse 12, 6020 Innsbruck, Austria
Email: support(at)noctua(dot)at
