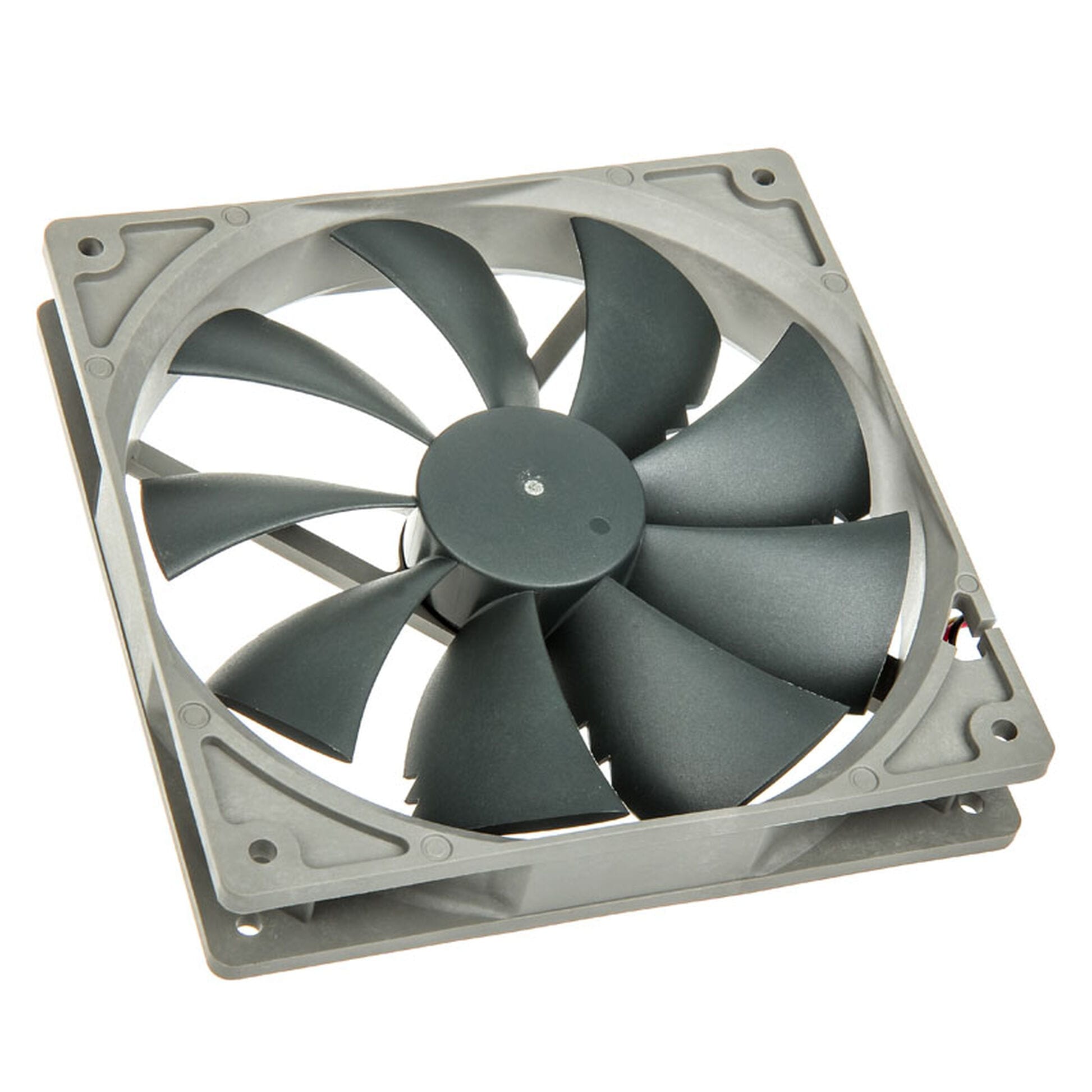

The Noctua NF-P14s redux-1200 PWM is a streamlined, high-quality 140mm fan delivering reliable cooling with balanced acoustics and airflow performance. Featuring Noctua’s proven aerodynamic design in a square-frame layout, it is ideal for case ventilation or mounting on watercooling radiators where consistent, silent airflow is critical. The PWM variant enables precise automatic speed control to match system cooling needs.

Key Features:

• Proven NF-P14 blade geometry for excellent pressure and airflow balance

• 1200 RPM max speed optimized for quiet operation and performance

• Square 140mm frame ensures broad compatibility with standard mounts

• SSO bearing for industry-leading longevity and smooth rotation

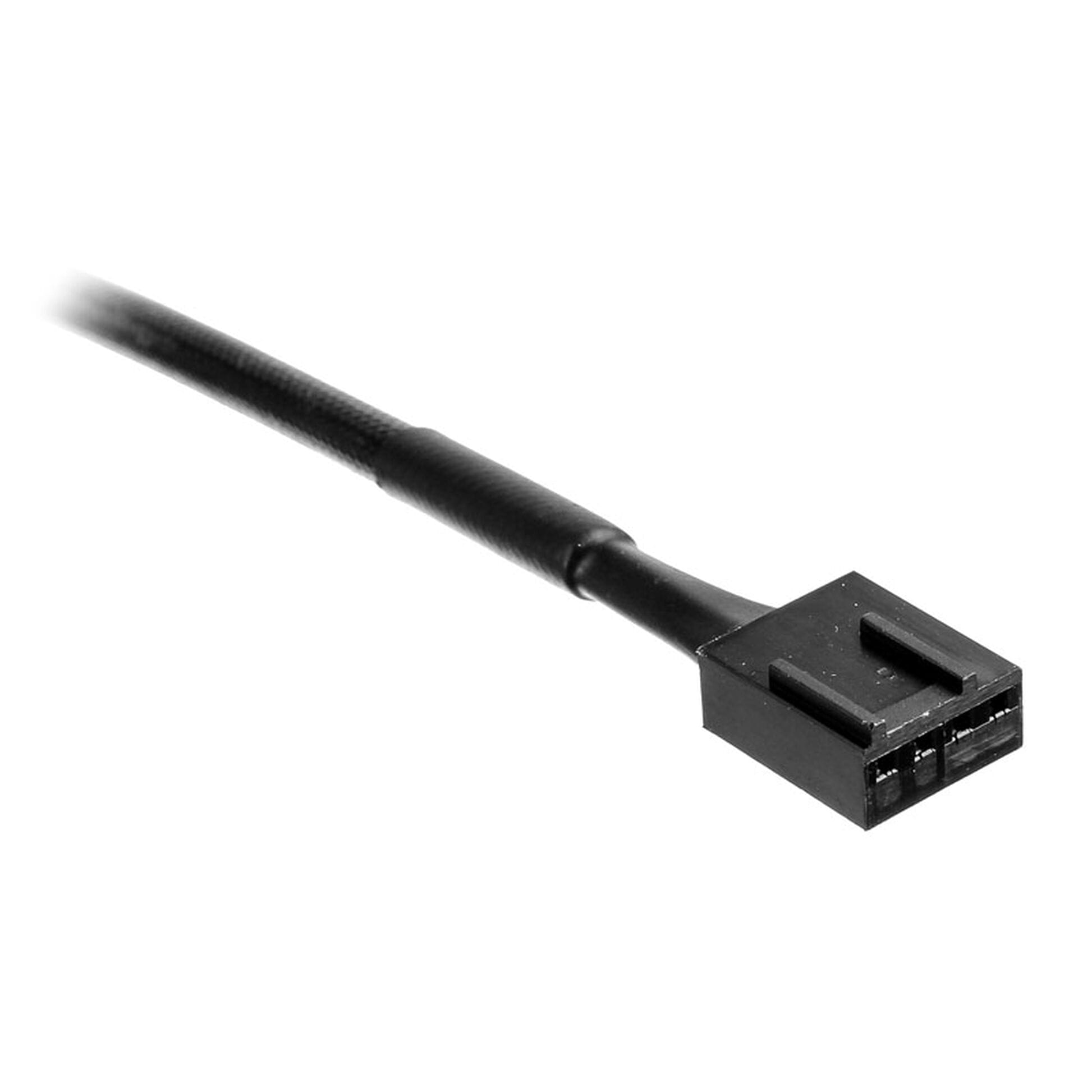

• 4-pin PWM connector for dynamic speed regulation

Specifications:

• Dimensions: 140 x 140 x 25 mm

• Weight: 160 g

• Materials: Fiberglass-reinforced polyamide (PA-GF)

• Connectivity / Compatibility: 4-pin PWM fan header

• Bearing: SSO (Self-Stabilising Oil-pressure Bearing)

• Max Rotational Speed: 1200 RPM

• Max Airflow: 110.3 m³/h

• Acoustical Noise: 19.6 dB(A)

• Static Pressure: 1.29 mm H₂O

• Input Power: 0.96 W

• Voltage Range: 12V DC (typical), PWM regulated

Additional Features:

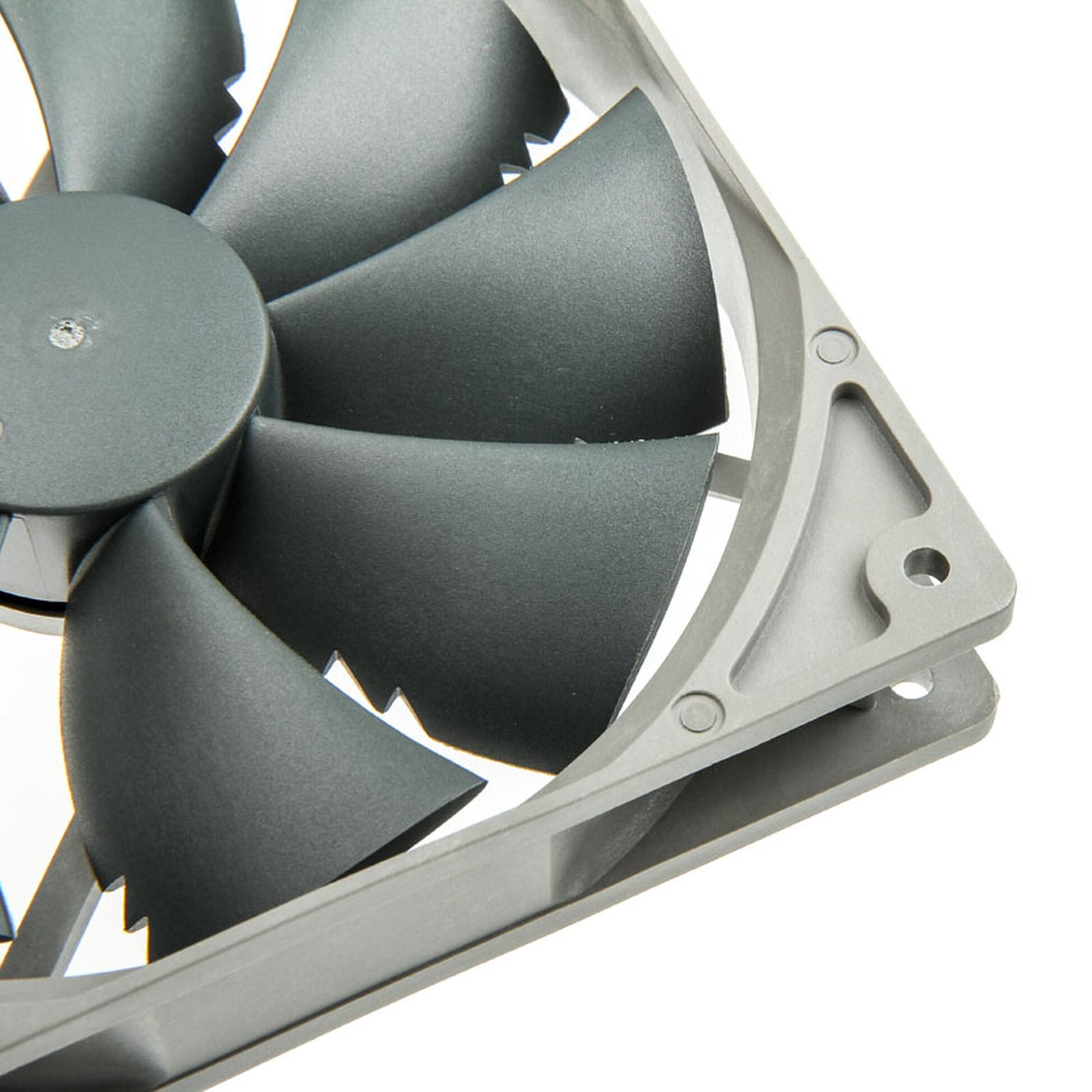

• Vortex-control notches to suppress noise-inducing turbulence

• Polarity protection and soft startup circuitry

• Suitable for CPU coolers, radiators, and silent case builds

• Long-term operation certified with 150,000h MTTF

Customer Benefits:
An excellent choice for users seeking quiet yet efficient 140mm airflow with precise PWM speed control. It balances cooling performance and low noise, making it ideal for silent workstations and high-performance PCs.

What’s in the Box:

• NF-P14s redux-1200 PWM Fan

• 4x Standard Fan Screws

Compliance:
Complies with all relevant international safety and environmental standards including CE, RoHS, and REACH. Designed for reliable, quiet operation in demanding environments.
