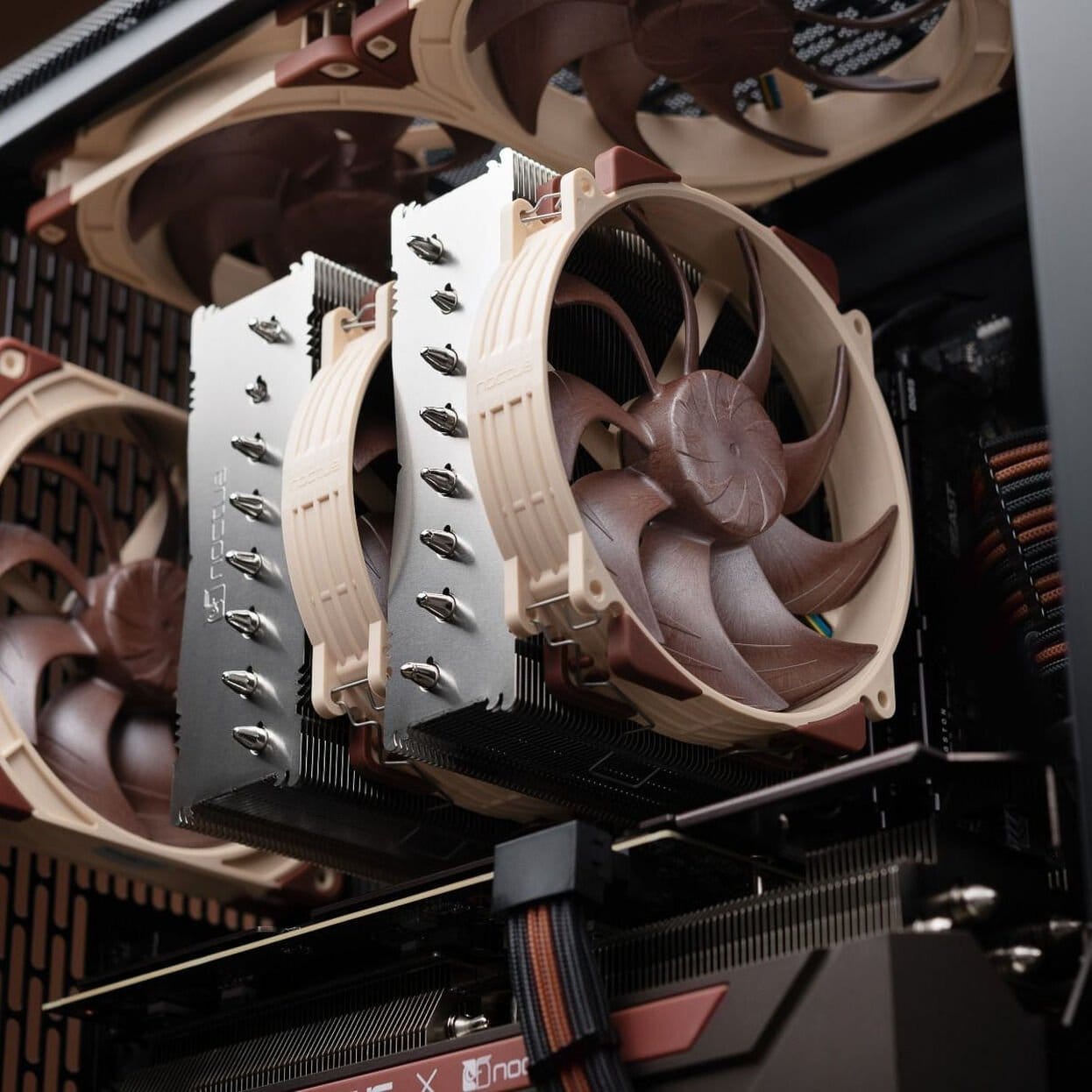

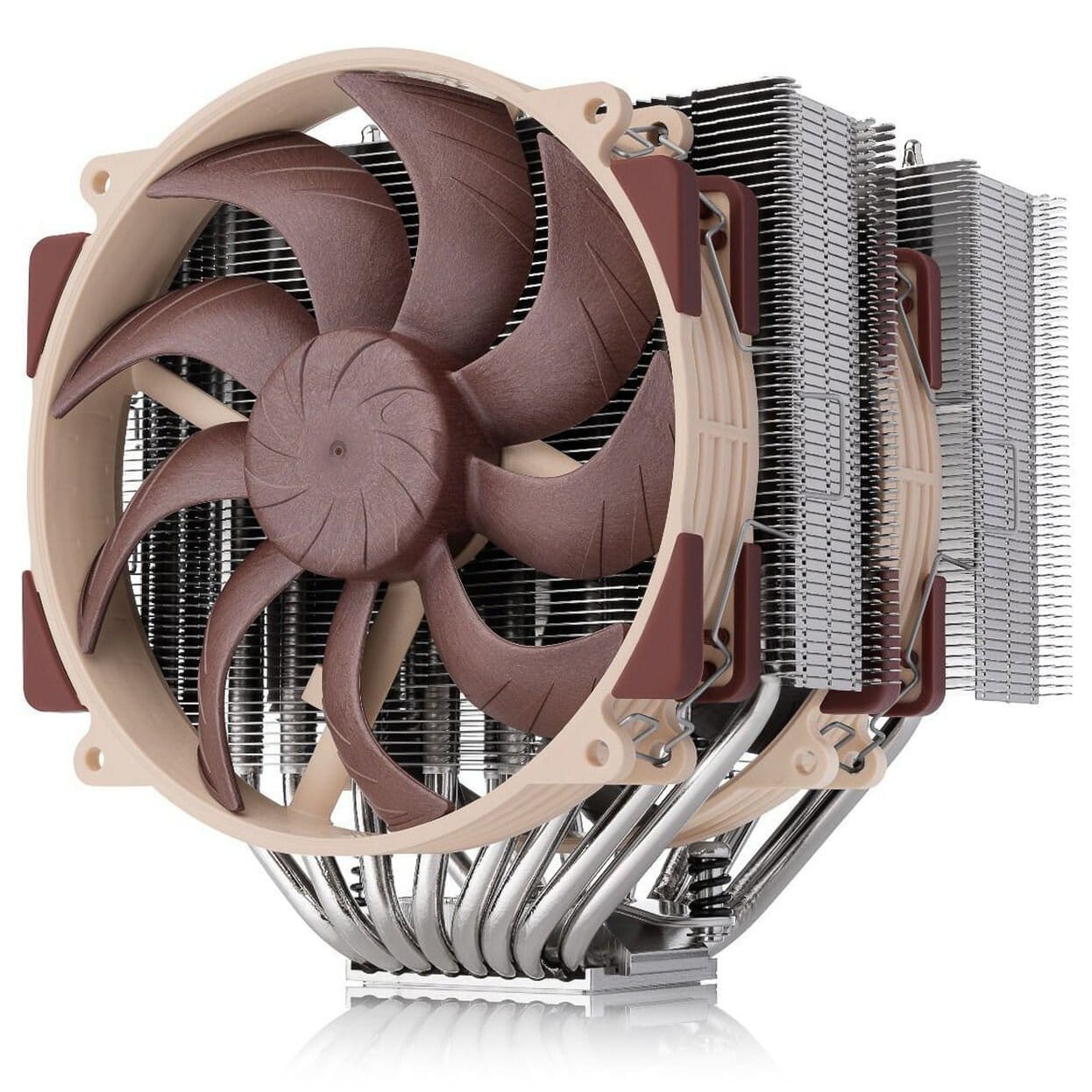

The Noctua NH-D15 G2 HBC is a precision-engineered version of the next-generation NH-D15, featuring High Base Convexity (HBC)—a contact surface optimized for CPUs with concave heatspreaders, such as AMD Ryzen 7000 (AM5) and Intel 13th/14th Gen (LGA1700) processors. Equipped with dual NF-A14x25r G2 PWM fans, adaptive mounting, and Sterrox® G2 aerodynamic advances, it offers unparalleled thermal performance and acoustic efficiency—tailored to the physical realities of today’s high-performance CPUs.

Key Features:

High Base Convexity base shape for enhanced contact with concave IHS (ideal for AM5 and LGA1700)

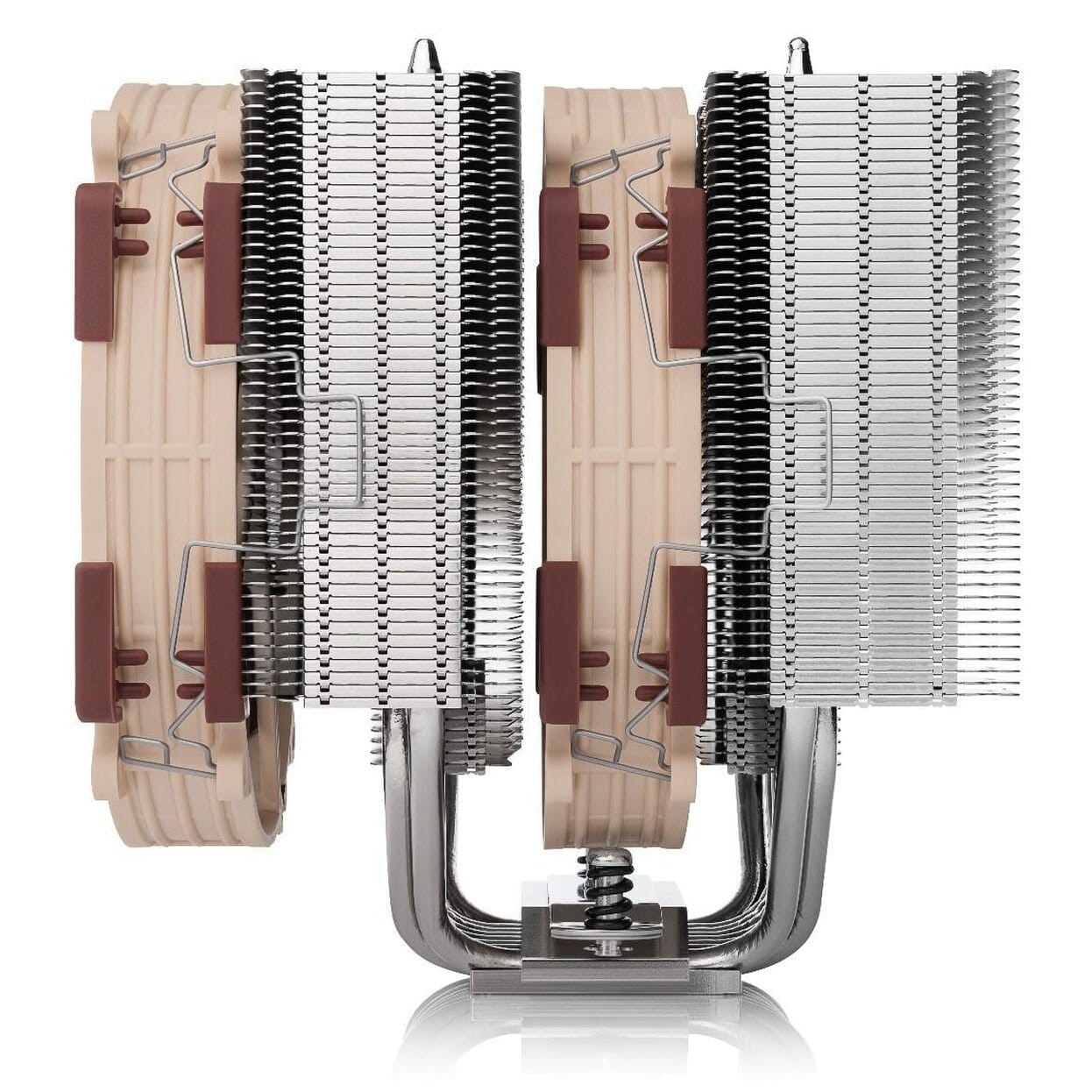

Dual-tower heatsink with asymmetrical fin-stack design for full RAM and PCIe compatibility

Equipped with 2 × NF-A14x25r G2 PWM fans featuring Sterrox® G2 material and aerodynamic refinement

Pre-applied NT-H2 compound and SecuFirm2™+ mounting system for fast, reliable installation

Mounting system pressure-tuned to maximize thermal transfer on modern socket geometries

Specifications:

• Dimensions (with fans): 165 x 150 x 144 mm

• Weight (with fans): ~1360 g

• Materials: Copper (base and heatpipes), aluminium (fins), soldered joints, nickel plating

• Socket Compatibility:

  • AMD AM5 / AM4

  • Intel LGA1700 / LGA1851

• Fans: 2 × NF-A14x25r G2 PWM

• Fan RPM: 500–2000 RPM ±10%

• Airflow: up to 140.2 m³/h

• Static Pressure: 3.60 mm H₂O

• Acoustics: max. ~31.5 dB(A)

• Power Connector: 4-pin PWM

• Max TDP: 250W+ (CPU and airflow dependent)

Additional Features:

• HBC version designed specifically for CPUs with convex dies or IHS warping

• Offset fin-stack ensures GPU and RAM compatibility in high-density builds

• Optional fan offset and push/pull configurations

• Reinforced mounting bar with adaptive tension across socket types

• Full G2 upgrade: enhanced aerodynamics, Sterrox 2, tighter tolerances

Customer Benefits:
The NH-D15 G2 HBC is purpose-built for the demanding thermal needs of warped or concave heatspreaders found on many modern CPUs. By optimizing base contact and fan pressure, it delivers maximum cooling potential while preserving whisper-quiet acoustics—ideal for overclockers, workstations, and silent-performance PC builds.

What’s in the Box:

• NH-D15 G2 HBC CPU cooler

• 2 × NF-A14x25r G2 PWM fans

• Y-splitter cable

• PWM extension cable

• Second fan mounting clips

• Pre-applied NT-H2 thermal compound

• SecuFirm2™+ mounting kit for Intel & AMD

• Noctua metal case badge

• Full-color installation manual

Compliance:
This product conforms to CE, RoHS, REACH, and WEEE standards. Engineered and manufactured in Austria with next-generation cooling technology and precision mounting for demanding desktop and workstation environments.

Manufacturer Contact:
Company Name: Noctua GmbH
Address: Josef-Preis-Allee 18, 8020 Graz, Austria
Email: support(at)noctua(dot)at
